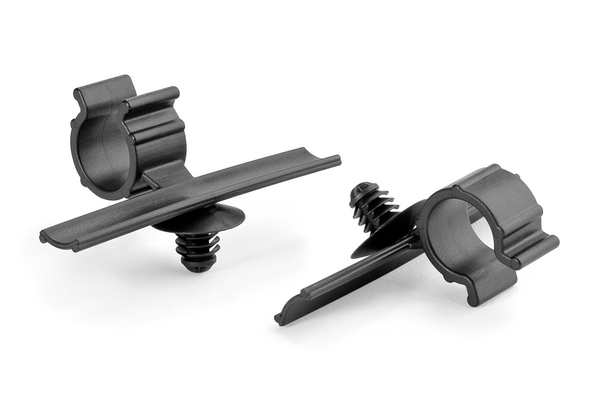

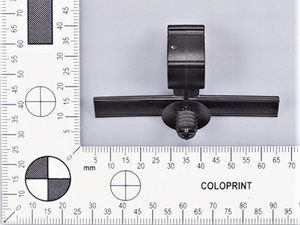

Bundling clip for hole (round)/with pipe/tube holder, L=60.0mm, SO=16.0mm, black, 2900pcs.
Art.-Nr. 151-03457
| TC60OC13FT6.7-PA66HIRHS-BK
|
Details
- The contour of the winding bar ensures that the cable is centered
- The OmegaClip can be used to attach and guide an additional hose or pipe if required
- The plate covers the fastening hole and provides rattle protection
- Simple installation, tool-free
Request your individual offer now
Request quote
| Application | The cable is securely guided by the winding clip. An additional hose or pipe with a diameter of 13 - 14 mm can be attached using the additional tube |
| Cable ∅ max | 14.0mm |
| Cable ∅ min | 13.0mm |
| Colour | Black (BK) |
| Fixation Method | Bundling Clip |
| Material | Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS) |
| PART DESCRIPTION | TC60OC13FT6.7-PA66HIRHS-BK |
| Pack Cont. | 2900pcs. |
| Package Content packed in | bag |
| Type | TC60OC13FT6.7 |
| Attach to Ø | 13.0 - 14.0 |
| Bundling Bar Length | 60.0mm |
| Disc ∅ | 16.0mm |
| Height (H) | 29.5mm |
| Height (H2) | 9.0mm |
| Length (L) | 60.0mm |
| Length (L2) | 12.0mm |
| Offset Length | 16.0mm |
| Panel Thickness max. | 0.5 - 3.0mm |
| Weight/Unit | 0.00256kg |
| Width (W) | 32.5mm |
| for Hole ∅ (FH) | 6.3 - 7.0 mm |
| for Panel Thickness min - max | 0.5 - 3 mm |
Download
|
|
|
| Country of Origin | PL |
| Customs Number | 39269097 |
| GTIN-13 / EAN | 4031026664682 |
| Packaging 1 - Height (m) | 0.8m |
| Packaging 1 - Length (m) | 0.6m |
| Packaging 1 - Qty | 2900 |
| Packaging 1 - Type | bag |
| Packaging 1 - Volume (m³) | 0.192m³ |
| Packaging 1 - Weight (kg) | 7.489411kg |
| Packaging 1 - Width (m) | 0.4m |
| Packaging 3 - Height (m) | 0.204m |
| Packaging 3 - Length (m) | 0.591m |
| Packaging 3 - Qty | 2900 |
| Packaging 3 - Type | box |
| Packaging 3 - Volume (m³) | 0.048m³ |
| Packaging 3 - Weight (kg) | 8.139411kg |
| Packaging 3 - Width (m) | 0.398m |
| Packaging 4 - Height (m) | 1.164m |
| Packaging 4 - Length (m) | 1.2m |
| Packaging 4 - Qty | 58000 |
| Packaging 4 - Type | pallet |
| Packaging 4 - Volume (m³) | 1.117m³ |
| Packaging 4 - Weight (kg) | 183.78kg |
| Packaging 4 - Width (m) | 0.8m |
