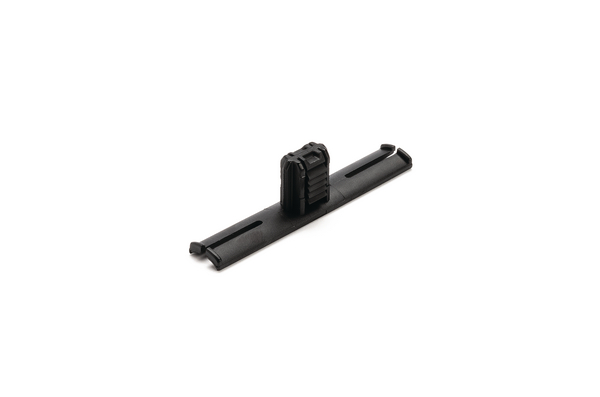

Bundling clip for hole (oval), black, 8000pcs.
Art.-Nr. 151-01281 | TCOP70X120-PA66HIRHS-BK |  Details

Bundling Clips with fir tree for a variety of applications with a wide range of panel thicknesses and drilled holes.

    • Simple installation, tool-free
    • Is attached to the bundle element with cable ties or adhesive tape
    • The oval base geometry serves as anti-twist protection and for defined cable routing
    Package size
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Application These bundling clips are mainly used in the automotive industry, particularly for the assembly of cable harnesses. They offer a simple and user-friendly method for fastening cables, hoses and pipes.
    Colour Black (BK)
    Fixation Method Fir Tree for oval holes
    Material Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
    PART DESCRIPTION TCOP70X120-PA66HIRHS-BK
    Pack Cont. 8000pcs.
    Package Content packed in carton
    Product Group Bundling Clips with Fir Tree, for Oval Holes
    Type TCOP70X120
    Fixing Hole Shape Oval
    Length (L) 55.0mm
    for Hole ∅ (FH) 7.0 x 12.0 mm
    for Panel Thickness min - max 0.6 - 6 mm
    Flammability UL 94 HB
    Operating Temperature -40 °C to +105 °C
    Country of Origin CN
    GTIN-13 / EAN 4031026486789
    ETIM 7.0 Key EC000127
    ETIM 8.0 Key EC000127
    ETIM 9.0 Key EC000127
    UNSPSC Key 39121702
