19/12/2024

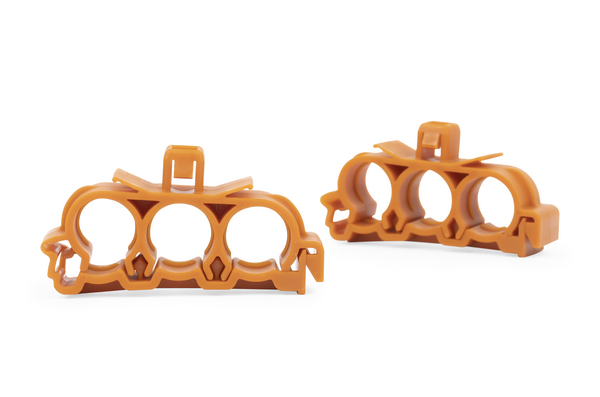

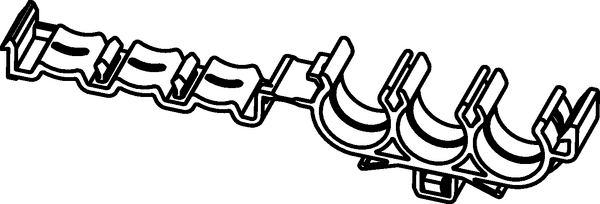

Corrugated tube clip for hole (square), nom∅16.0mm, orange, 100pcs.
Art.-Nr. 151-03182 | TCTC16SFT10x10-PA6-OG |  Details

    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Colour Orange (OG)
    Fixation Method with Arrowhead / Push Mount (Mounts)
    Key product features for convoluted tubes or with rib, for multiple routing
    Material Polyamide 6 (PA6)
    PART DESCRIPTION TCTC16SFT10x10-PA6-OG
    Pack Cont. 100pcs.
    Package Content packed in bag
    Type TCTC16SFT10x10
    Attach to Ø 16.0
    Bundle Diameter max (metric) 16.0mm
    Bundle ∅ 16.0-16.0mm
    Bundle ∅ min. 16.0mm
    Height (H) 33.6mm
    Length (L) 68.3mm
    Nominal ∅ 16.0mm
    Panel Thickness max. 1.0-1.8mm
    Weight/Unit 0.01kg
    Width (W) 15.0mm
    for Hole ∅ (FH) 10.0 x 10.0 mm (square)
    for Panel Thickness min - max 1 - 1.8 mm
    ELV compliant (Article 4 - 2) YES
    Hazardous Goods No
    ROHS compliant Yes
    Specifications
    Country of Origin CN
    Customs Number 39269097
    GTIN-13 / EAN 4031026642840
    Packaging 1 - Height (m) 0.12m
    Packaging 1 - Length (m) 0.415m
    Packaging 1 - Qty 100
    Packaging 1 - Type bag
    Packaging 1 - Volume (m³) 0.01668m³
    Packaging 1 - Weight (kg) 1.028kg
    Packaging 1 - Width (m) 0.335m
    Packaging 3 - Height (m) 0.36m
    Packaging 3 - Length (m) 0.57m
    Packaging 3 - Qty 600
    Packaging 3 - Type carton
    Packaging 3 - Volume (m³) 0.0759m³
    Packaging 3 - Weight (kg) 7.12kg
    Packaging 3 - Width (m) 0.37m
    Packaging 4 - Height (m) 1.194m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 7200
    Packaging 4 - Type pallet
    Packaging 4 - Volume (m³) 1.146m³
    Packaging 4 - Weight (kg) 106.44kg
    Packaging 4 - Width (m) 0.8m
    ETIM 7.0 Key EC000464
    ETIM 8.0 Key EC000464
    ETIM 9.0 Key EC000464
    UNSPSC Key 39121702
