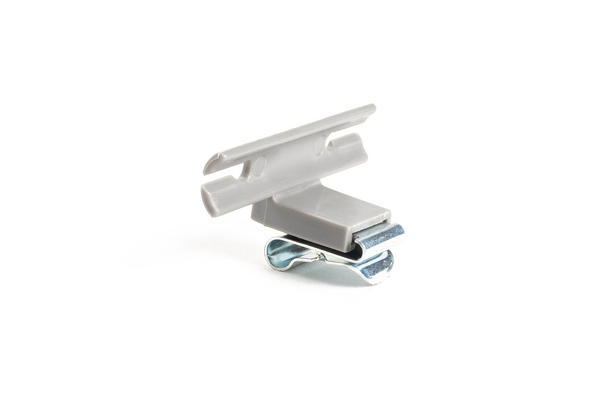

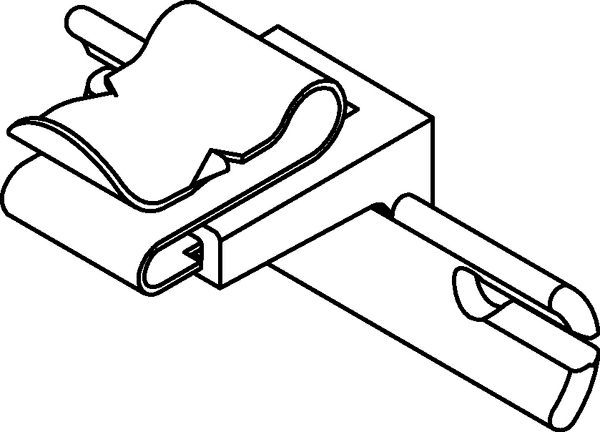

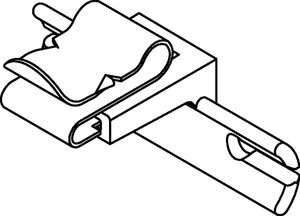

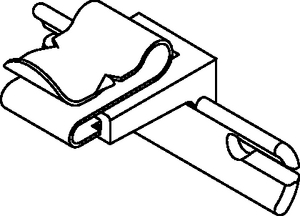

Bundling clip for edge, L=36.22mm, SO=6.6mm, grey, 4000pcs.
Art.-Nr. 133-03399
| TEC52-PA66HIRHSUV/MET-GY
|
Details
| Bundle Diameter max (metric) | 7.8mm |
| Bundle ∅ | 7.8mm |
| Bundling Bar Length | 36.22mm |
| Diameter (D) | 4.0mm |
| Height (H) | 7.5mm |
| Length (L) | 15.1mm |
| Length (L2) | 36.2mm |
| Offset Length | 6.6mm |
| Panel Thickness max. | 0.8 - 2.0mm |
| Weight/Unit | 0.002471kg |
| Width (W) | 11.2mm |
| Width (W2) | 15.2mm |
| for Panel Thickness min - max | 0.8 - 2 mm |
| ∅ D | 0.16" |
Download
|
|
|
| Country of Origin | MX |
| Customs Number | 39269097 |
| GTIN-13 / EAN | 4031026594781 |
| Packaging 1 - Height (m) | 0.13m |
| Packaging 1 - Length (m) | 0.56m |
| Packaging 1 - Qty | 4000 |
| Packaging 1 - Type | bag |
| Packaging 1 - Volume (m³) | 0.02512m³ |
| Packaging 1 - Weight (kg) | 9.884001kg |
| Packaging 1 - Width (m) | 0.345m |
| Packaging 3 - Height (m) | 0.1730375m |
| Packaging 3 - Length (m) | 0.57785m |
| Packaging 3 - Qty | 4000 |
| Packaging 3 - Type | box |
| Packaging 3 - Volume (m³) | 0.0349m³ |
| Packaging 3 - Weight (kg) | 10.994001kg |
| Packaging 3 - Width (m) | 0.34925m |
| Packaging 4 - Height (m) | 1.182m |
| Packaging 4 - Length (m) | 1.2m |
| Packaging 4 - Qty | 96000 |
| Packaging 4 - Type | pallet |
| Packaging 4 - Volume (m³) | 1.135m³ |
| Packaging 4 - Weight (kg) | 284.856kg |
| Packaging 4 - Width (m) | 0.8m |
