Connector clip for connector, EWCAP-005-11, black, 2000pcs.
Art.-Nr. 151-03667 | TRIPLE7CCBRKT-PA66HIRHSUV-BK |  Details

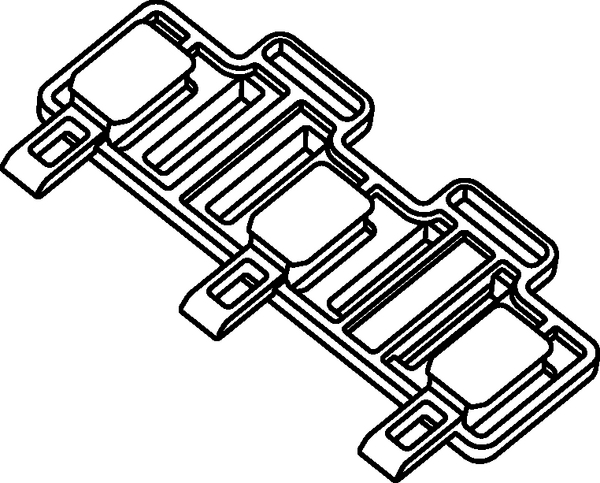

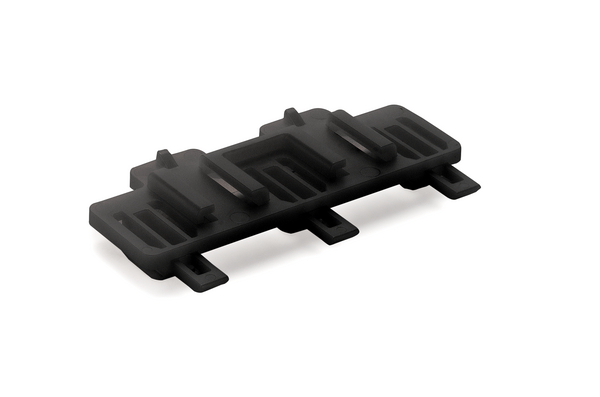

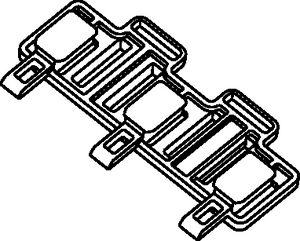

Two-sided triple 7mm USCAR connector bank with 11mm slots for mounts provides exceptional versatility for mounting of connectors.

    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Colour Black (BK)
    Material Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV)
    PART DESCRIPTION TRIPLE7CCBRKT-PA66HIRHSUV-BK
    Pack Cont. 2000pcs.
    Package Content packed in bag
    Type TRIPLE7CCBRKT
    Type of connection USCAR7
    Variant 2x 11 mm USCAR Connector Clip
    Height (H) 8.7mm
    Length (L) 61mm
    Weight/Unit 0.003kg
    Width (W) 32.5mm
    CE Certification No
    CSA Certified No
    ELV compliant (Article 4 - 2) YES
    Flammability UL 94 HB
    Halogen-free No
    Hazardous Goods No
    Operating Temperature -40 °C to +90 °C
    ROHS compliant Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UL Recognized (US and Canada) No
    UV-Stabilised Yes
    Country of Origin MX
    Customs Number 39269097
    GTIN-13 / EAN 4031026685441
    Packaging 3 - Height (m) 0.20955m
    Packaging 3 - Length (m) 0.60801m
    Packaging 3 - Qty 2000
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.0506m³
    Packaging 3 - Weight (kg) 6.095kg
    Packaging 3 - Width (m) 0.39688m
    Packaging 4 - Height (m) 1.254m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 30000
    Packaging 4 - Type pallet
    Packaging 4 - Volume (m³) 1.204m³
    Packaging 4 - Weight (kg) 112.425kg
    Packaging 4 - Width (m) 0.8m
    ETIM 7.0 Key EC000127
    ETIM 8.0 Key EC000127
    ETIM 9.0 Key EC000127
    UNSPSC Key 39121702
