Accessory, HelaGuard, black, 10pcs. (AFCP1000)
Art.-Nr. 166-90377 | AFCP1000-PA66-BK |

Copied

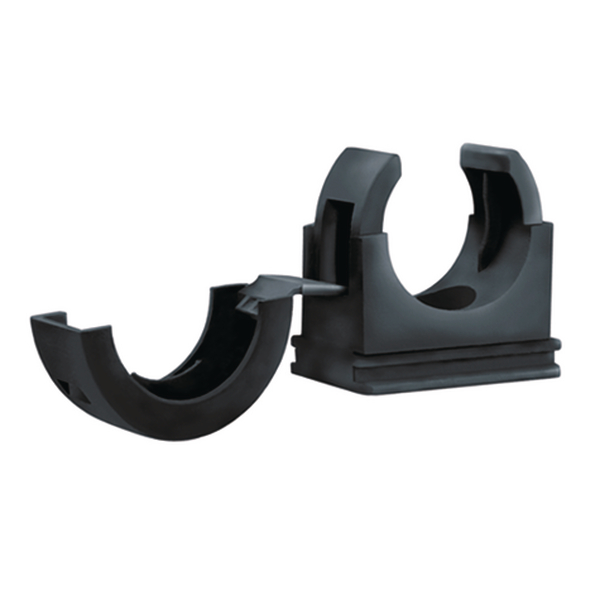

Conduit clips feature an integrated flip open lid for quick and easy assembly.

    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Colour Black (BK)
    Material Polyamide 6.6 (PA66)
    PART DESCRIPTION AFCP1000-PA66-BK
    Pack Cont. 10pcs.
    Package Content packed in pack
    Type AFCP1000
    Variant Clip
    Height (H) 51mm
    Length (L) 48mm
    Nominal ⌀ 1"
    Nominal ⌀ 33mm
    Width (W) 15mm
    for Hole ⌀ (FH) 6.0 mm
    Flammability UL 94 V2
    Operating Temperature -50 °C to +135 °C
    UV-Stabilised No
    Country of Origin GB
    GTIN-13 / EAN 4031026517926
    UNSPSC Key 39131708
    Cable protection conduits Cable protection conduits

    Cable Protection Conduits

    No cable can meet the demands posed today in terms of abrasion resistance, tensile strength and form consistency or impact resistance without having appropriate cable protection. Cable protection tubes...
