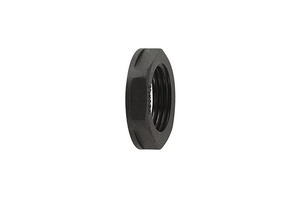

PA66 Locknuts PG29
Art.-Nr. 166-50147 | ALPA-PG29-PA66GF30-BK Details

Request your individual offer now

Application The ALPA hexagonal locknut is used to secure fitting.
Colour Black (BK)
Material Polyamide 6.6, glass-fibre reinforced (PA66GF30)
PART DESCRIPTION ALPA-PG29-PA66GF30-BK
Pack Cont. 1pc.
Package Content packed in bag
Product Family ALPA PA66 (glass-fibre reinforced) locknuts
Product Group HelaGuard accessories
Short Description PA66 Locknuts PG29
Thread type PG
Type ALPA-PG29
A/F Nut (A/F3) 46mm
Outside ∅ max (OD max.) 50mm
Thickness (T) 7
Thread Size PG29
Weight/Unit 0.013kg
CE Certification Yes
ELV compliant (Article 4 - 2) YES
Halogen-free Yes
Hazardous Goods No
Operating Temperature -50 °C to +135 °C
ROHS compliant Yes
Specifications
Country of Origin TR
Customs Number 39269097
GTIN-13 / EAN 4031026310107
Packaging 1 - Height (m) 0.01m
Packaging 1 - Length (m) 0.23m
Packaging 1 - Qty 1
Packaging 1 - Type bag
Packaging 1 - Volume (m³) 0.00037
Packaging 1 - Weight (kg) 0.013001kg
Packaging 1 - Width (m) 0.16m
Packaging 2 - Height (m) 0.216m
Packaging 2 - Length (m) 0.3048m
Packaging 2 - Type carton
Packaging 2 - Volume (m³) 0.0176
Packaging 2 - Width (m) 0.267m
ETIM 7.0 Key EC000940
ETIM 8.0 Key EC000940
ETIM 9.0 Key EC000940
