FRBU Connectorised
Art.-Nr. 857-02593 | FRBCT-MXXSA21-MX | Details

Request your individual offer now

Request quote

More products in this product group:

Colour	Black (BK)
Content	LC/APC Quad Adaptors (4) FRBU 16 Port Base M Length Cover Quick Release Clamp Sealing 'O' Ring Adaptor Shield Tray Support Frame Anchor Fixing Kit (2) Hellapon Small Tray 3A (2) Isopropyl Alcohol Wipes (2) Dessicant Marker Kit
Material	Polypropylene (PP)
Method of Sealing	Cablelok
PART DESCRIPTION	FRBCT-MXXSA21-MX
Package Content packed in	box
Port	R, LM
Port count	16
Product Family	M Length with 4 LC Quad Adaptors
Product Group	FRBU Connectorised
Qty Trays	2
Splice Capacity	48

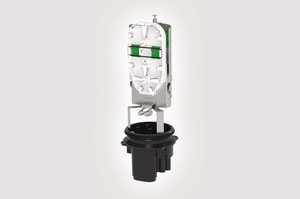

Technical Description	The FRBU 16 port connectorised M length closure is an IP68 dome closure manufactured from UV stable polypropylene with a base configuration of 16 round ports and 1 oval port which accommodates cable diameter ranges of 1.7 – 9.5mm (R Ports) and 4.0 – 15.0mm (LM port) when using Cablelok mechanical seals. The closure mounting system is manufactured from Grade 304 stainless steel and supports 2 x Hellapon Small splice trays, the adaptor management plate, a fibre storage basket and adaptor shield. Each Hellapon Small splice trays are fitted with 2 x 3A splice bridges allowing for 24 double stacked 3A splices per tray. The adaptor plate and shield houses 4 x LC/APC quad adaptors. The base has an integrated closure mounting point which can be used with the FRBU moulded mounting brackets for mounting on a wall, pole or Mobra arm and allows the cover to be removed and the closure to stay in place during installation or maintenance.
Type	FRBCT-MXXSA21-MX
Variant	Outdoor Enclosure
