This Product is No Longer on General Sale

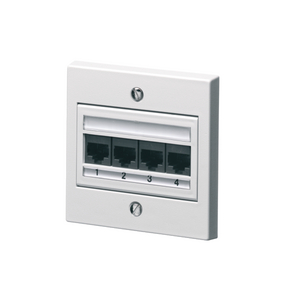

Global UTP Category 6
Art.-Nr. 852-35130
| 0408IDCG6/WH
|
Details

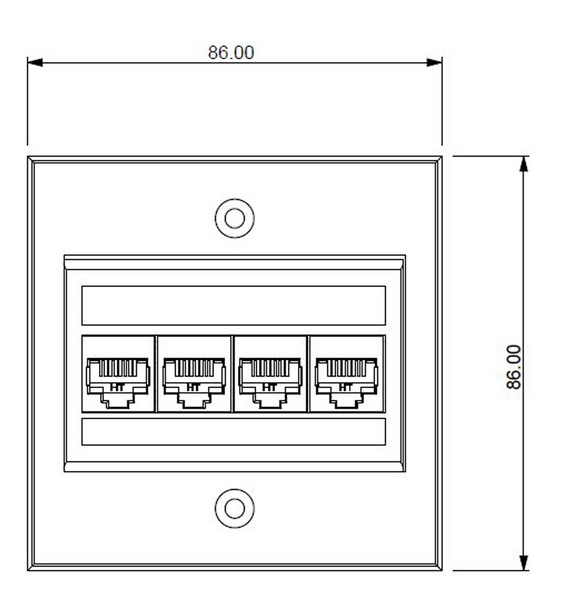

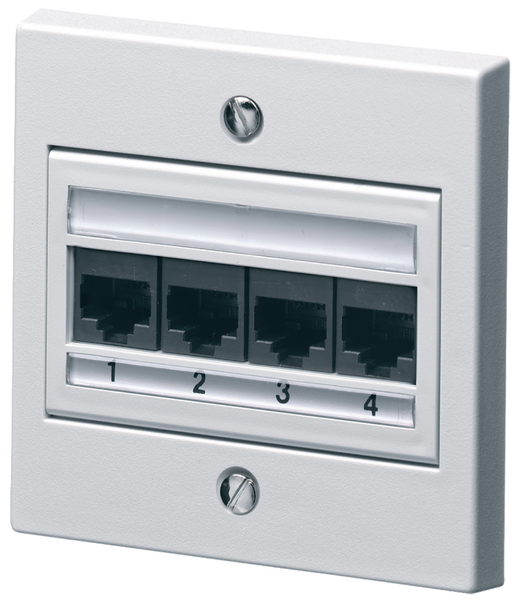

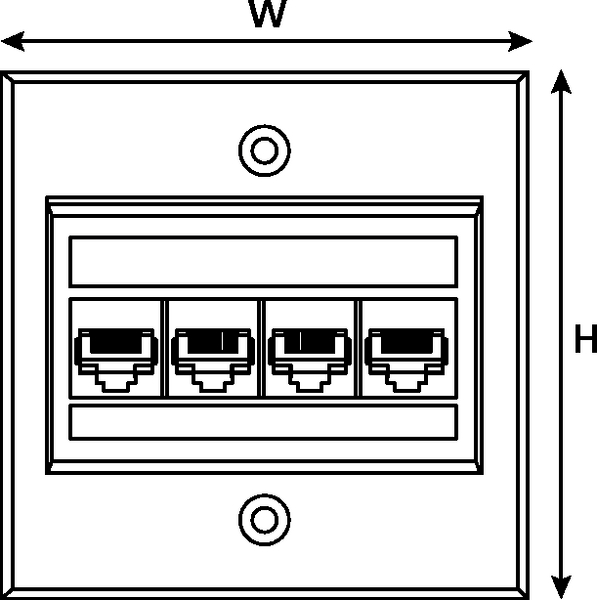

- Compact 4 port outlet (single gang faceplate)
- 568A and 568B wiring options
- Hi port density
- Incorporates 4 port snap-in PCB assembly within a standard faceplate
- Dual label fields with magnifying lens
- Labelling software available
- Rear cable management clip included
- Backward compatible with Category 5e, Category 5 and voice
Request your individual offer now
Request quote
More products in this product group:
| Application | Global products are designed to support any data or voice application protocol that is capable of running over a Cat6 cabling system. |
| Colour | White (WH) |
| Description | The Global Category 6 Outlet has been designed to accommodate the same 4 port module used in the Global Panels and provides a high port density for data and voice services within a single gang space. Designed specifically for office environments, the Global Category 6 Outlet offers multiple services in one location. This product is commonly used on service poles where power is supplied on one side and data/voice on the other, networking multiple desks. The Global products are designed to support any data or voice protocol that is capable of running over a Category 6 cabling system. |
| Internet Customer Notice | This Product is No Longer on General Sale |
| PART DESCRIPTION | 0408IDCG6/WH |
| Pack Cont. | 1pc. |
| Performance Category | Category 6 (Class E) |
| Port count | 4 |
| Product Family | 4 Port Outlet |
| Product Group | Global UTP Category 6 |

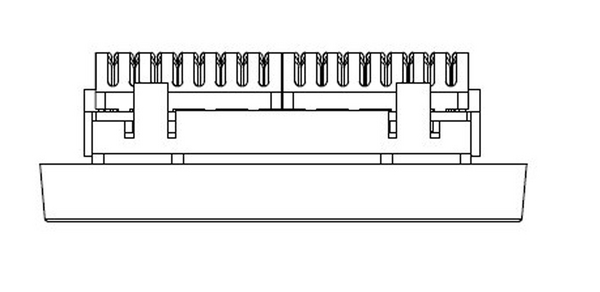

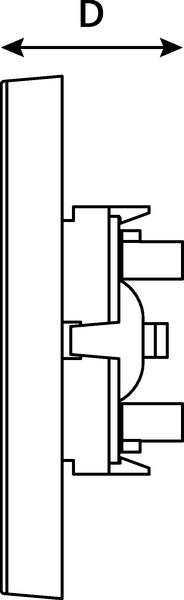

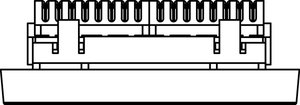

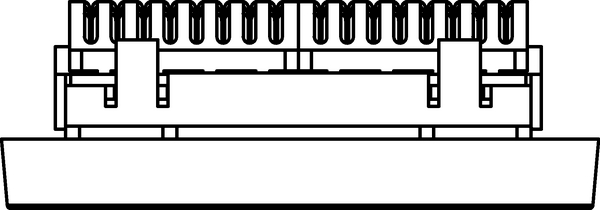

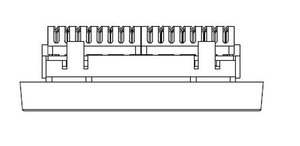

| Technical Description | The Global Category 6 Outlets incorporate a 4 port snap-in PCB assembly mounted within a standard single gang UK faceplate. The four way PCB module is mounted in a plastic carrier with a rear clip. A label showing the colour code is mounted on the rear cable management clip. Each port presented at the front can be identified using the unique labelling system with magnifying label. The Global Category 6 Outlet is tested to exceed the latest published versions of ISO/IEC 11801, BS/EN50173 and ANSI/TIA/EIA 568-C Category 6. The Alpha Label software package is available for download at www.htdata.co.uk and enables straight forward port labelling. The Global Category 6 Outlet offers backward compatibility with Category 5e, Category 5 and voice products. |
| Type | 0408IDCG6/WH |
