CAT6 Unshielded Euro Outlet
Art.-Nr. 852-05381 | EC08IDCNGB/WH |

Copied

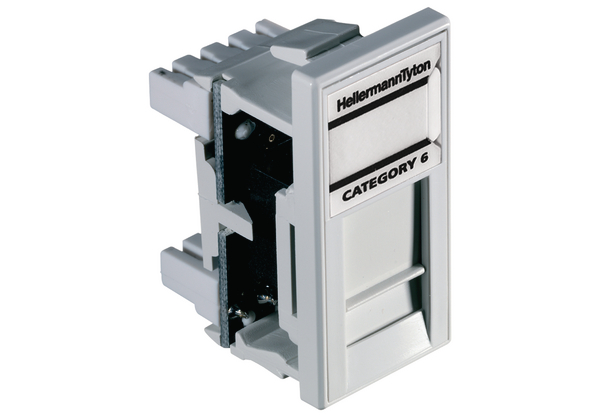

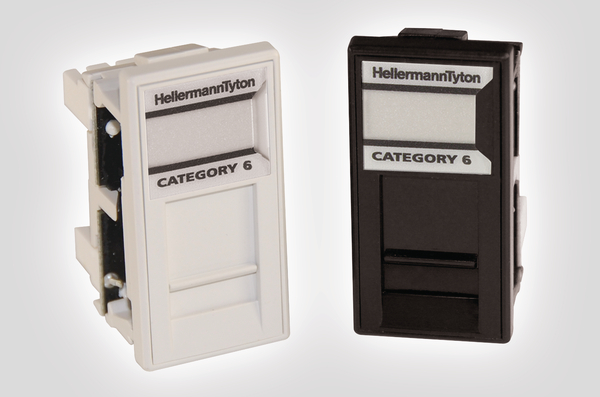

Category 6 Single Outlets (shown in black and white)

    This product is not available anymore.
    • Industry standard Euro dimensions
    • Unshielded shuttered RJ45 Port
    • Slide-in Label Field
    • Available in black or white
    • Min Jack Life 1000 insertions
    • Part of the HellermannTyton 25 year system warranty
    • Backward compatible with Cat5e & voice applications
    Show more
    Add to watchlist

    Request your individual offer now

     Request quote
    Colour White (WH)
    Description HellermannTyton Euro Outlets have been developed in line with industry standard euro dimensions 50x25mm to give the user a reliable cabling outlet at floor distribution level. Designed for use in wall outlets to support any data or voice protocol that is capable of running over a Category 6 cabling system.
    PART DESCRIPTION EC08IDCNGB/WH
    Pack Cont. 10pcs.
    Package Content packed in box
    Performance Category Category 6 (Class E)
    Port count 1
    Product Family 50 x 25mm - Flat - White
    Product Group CAT6 Unshielded Euro Outlet
    Technical Description Each individual Outlet is built and tested to exceed the latest published versions of ISO/IEC 11801, BS/EN50173 and ANSI/TIA/EIA 568-C.
    Cat6 Euro outlets are backwards compatible with Cat5e and voice applications.
    Type EC08IDCNGB/WH

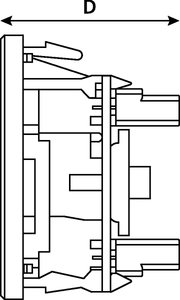

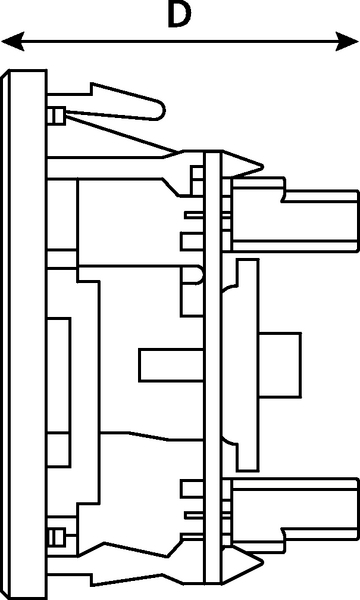

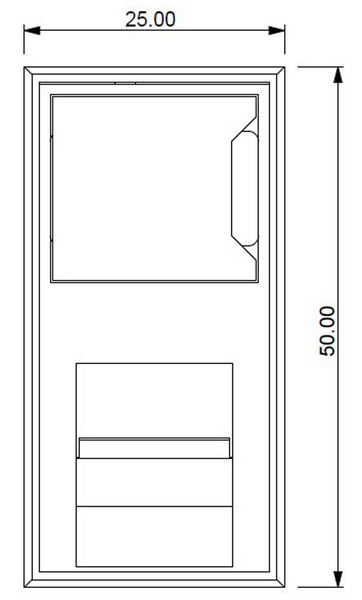

    Depth (D) 34mm

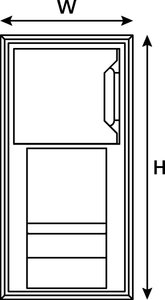

    Height (H) 50mm
    Width (W) 25mm

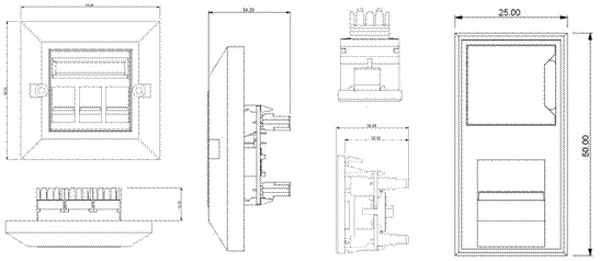

    Dimensions W x H x D 25 mm x 50 mm x 34 mm
    GTIN-13 / EAN 5022660824616
    Packaging 1 - Weight (kg) 0.018kg
    ETIM 7.0 Key EC001121
    ETIM 8.0 Key EC001121
    ETIM 9.0 Key EC001121
