Shaft entry Pipeground
Art.-Nr. 875-00043 | RAd-t_110/2x50(40)-BK |  Details

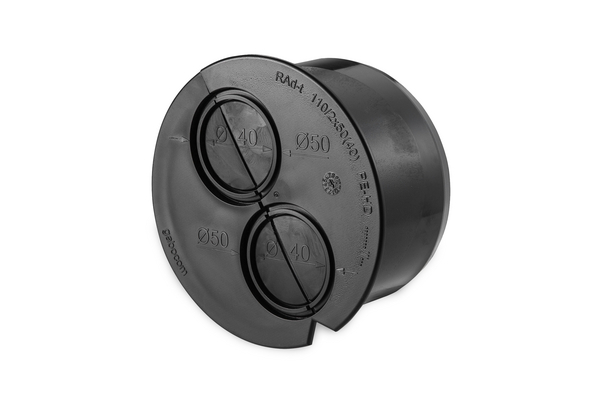

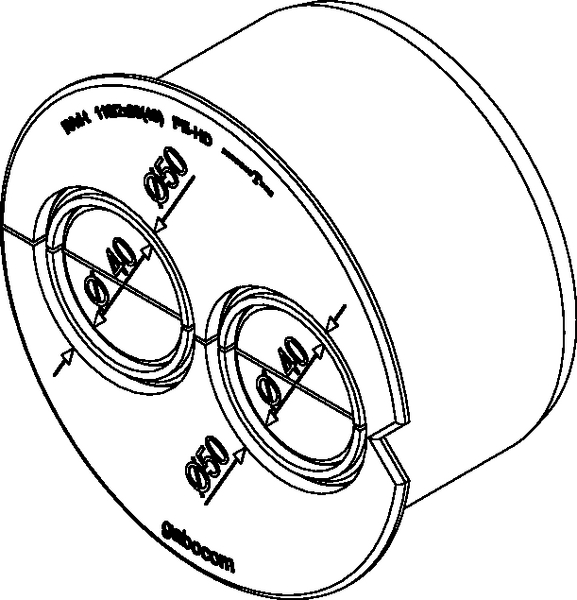

Duct adaptor RAd-t for use in sleeves.

    • divisible
    • made from PE-HD
    • easy and fast assembly of the tubes due to predetermined breaking points
    Add to watchlist

    Request your individual offer now

     Request quote
    Application The divisible duct adaptor Rad-t made of PE-HD is installed in sleeves with a diameter of 110 mm. They are suitable for PE-HD ducts with a diameter of 40 or 50 mm.
    Colour Black (BK)
    PART DESCRIPTION RAd-t_110/2x50(40)-BK
    Pack Cont. 20pcs.
    Package Content packed in carton
    Product Family RAd-t 110/2x50(40)
    Product Group Shaft entry Pipeground
    Type RAd-t_110/2x50(40)
    Diameter (D) 110mm
    Length (L) 65mm
    Country of Origin DE
    GTIN-13 / EAN 4031051014742
    Packaging 1 - Qty 20
    Packaging 1 - Type carton
    Packaging 2 - Qty 540
    Packaging 2 - Type pallet
    ETIM 7.0 Key EC000000
    ETIM 8.0 Key EC000000
    ETIM 9.0 Key EC000000
