BSHKLPFR1140B-PET-BK
Art.-Nr. 170-03155 | BSHKLPFR1140B-PET-BK |  Details

Braided sleeving material is self-extinguishing and complies with UL VW-1 standards.

    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Colour Black (BK)

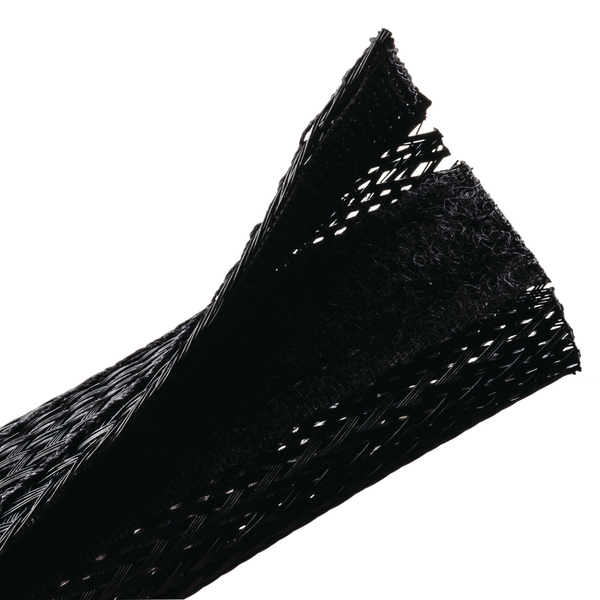

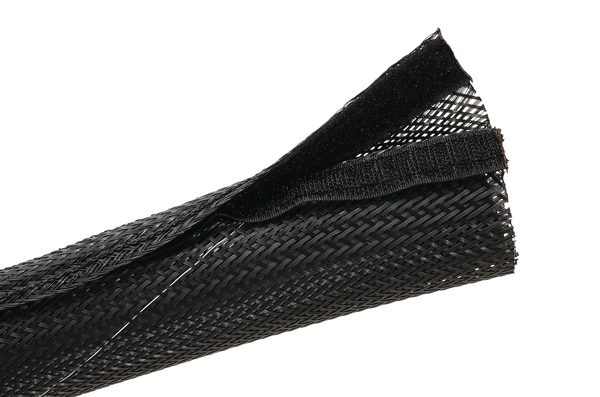

    Description Flame retardant expandable braided sleeving with hook & loop strip for wrapping around cable assemblies. Color matched hook & loop closure provides an easy on and off installation, as well as convenient access for harness break-outs.
    Material Polyester (PET)
    Open, post termination (Yes/No) No
    PART DESCRIPTION BSHKLPFR1140B-PET-BK
    Pack Cont. 30.48m
    Package Content packed in reel
    Type BSHKLPFR1140B
    Bundle Diameter max (metric) 31.8mm
    Bundle ∅ 2.54-31.8mm
    Bundle ∅ min. 2.54mm
    Diameter (D) 31.8mm
    Length (L) 30.48m
    Nominal ∅ 1.25"
    Nominal ∅ 31.8mm
    Wall (WT) 0.635mm
    Wall (WT) 0.025"
    ∅ D 1.25"
    Abrasion Resistance Medium
    CE Certification No
    CSA Certified No
    Flammability UL 224 VW-1
    Halogen-free Yes
    Melting Point +250 °C
    Operating Temperature -70 °C to +125 °C
    ROHS compliant Yes
    Specifications
    Specifications MIL-STD 202, UL
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) Yes
    UL Recognized (US and Canada) No
    UL-File Number E107055
    US Gov. Designation MIL-STD-202
    UV-Stabilised No
    Country of Origin US
    GTIN-13 / EAN 4031026443997
    Packaging 1 - Weight (kg) 1.04kg
    Reel Length 100.0ft
    Reel Length 30.5m
    ETIM 7.0 Key EC001182
    ETIM 8.0 Key EC001182
    ETIM 9.0 Key EC001182
    UNSPSC Key 39131602
    Cable protection conduits Cable protection conduits

    Cable Protection Conduits

    No cable can meet the demands posed today in terms of abrasion resistance, tensile strength and form consistency or impact resistance without having appropriate cable protection. Cable protection tubes...
