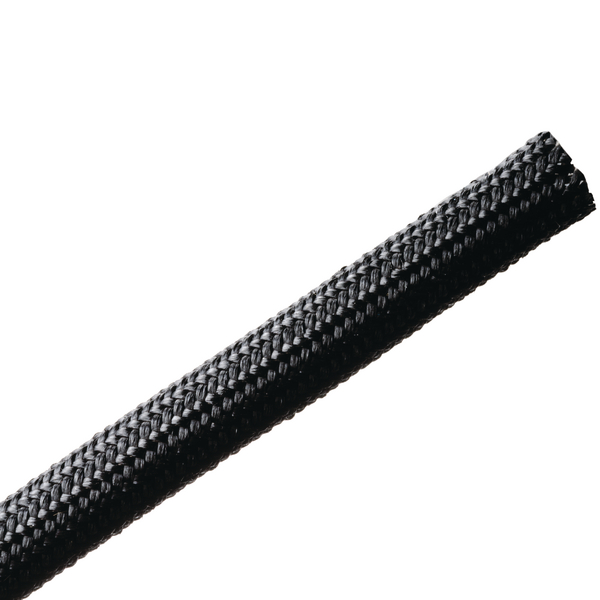

Resin Saturated Fiberglass-High Temperature
Art.-Nr. 170-03050 | BSHTFG140B-GF-BK

Copied
  • An extremely tough sleeving material which provides thermal protection up to 648 °C (1,200°F)
  • Sturdy construction maintains its tight structure under extreme shaking, scraping, pressure and varying temperature conditions
  • Cuts easily with ordinary scissors for easy application
  • UL VW-1 flammability rating for use in conditions requiring a very high degree of flame resistance

Request your individual offer now

Colour Black (BK)
Description An extremely high-temperature resistant sleeving designed to protect wires and cables subjected to continuous temperature variations, vibration, abrasion, and mechanical stress.
Material Glass-fibre (GF)
Open, post termination (Yes/No) Yes
PART DESCRIPTION BSHTFG140B-GF-BK
Pack Cont. 60.96m
Package Content packed in reel
Product Group Resin Saturated Fiberglass-High Temperature
Type BSHTFG140B
⌀ D 0.25"
Bundle ⌀ 2.54-9.5mm
Bundle ⌀ max. 9.5mm
Bundle ⌀ min. 2.54mm
Diameter (D) 6.4mm
Length (L) 61.0m
Nominal ⌀ 0.25"
Nominal ⌀ 6.4mm
Wall (WT) 0.031"
Wall (WT) 0.79mm
Weight/Unit 0.03kg
Abrasion Resistance Very high
CE Certification No
CSA Certified No
ELV compliant (Article 4 - 2) YES
Flammability UL VW-1
Halogen-free Yes
Hazardous Goods No
Melting Point +2048 °F (1120 °C)
Operating Temperature -70 °C to +650 °C
ROHS compliant Yes
Specifications
UL Listed (US and Canada) No
UL Listed (US and Canada) No
UL Recognized (US and Canada) No
UL Recognized (US) Yes
UL-File Number E329694
UV-Stabilised No
Country of Origin MX
Customs Number 70199000
GTIN-13 / EAN 4031026436432
Packaging 1 - Height (m) 0.102m
Packaging 1 - Length (m) 0.254m
Packaging 1 - Qty 61
Packaging 1 - Type reel
Packaging 1 - Volume (m³) 0.00658
Packaging 1 - Weight (kg) 1.81kg
Packaging 1 - Width (m) 0.254m
Packaging 3 - Height (m) 0.152m
Packaging 3 - Length (m) 0.279m
Packaging 3 - Qty 61
Packaging 3 - Type carton
Packaging 3 - Volume (m³) 0.0118
Packaging 3 - Weight (kg) 2.31kg
Packaging 3 - Width (m) 0.279m
Packaging 4 - Height (m) 1.208m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 3414
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.16
Packaging 4 - Weight (kg) 150.36kg
Packaging 4 - Width (m) 0.8m
Reel Length 200.0ft
Reel Length 61.0m
ETIM 7.0 Key EC001182
ETIM 8.0 Key EC001182
ETIM 9.0 Key EC001182
UNSPSC Key 39131602
