LC Fibre Panels
Art.-Nr. 855-04228 | FAP12DMMLC | Details

Request your individual offer now

Request quote

More products in this product group:

Colour	Beige (BGE)
Connector Type	LC
Description	ADAPTER PANEL-24 LC MM BEIGE
PART DESCRIPTION	FAP12DMMLC
Pack Cont.	1pc.
Performance Category	Multimode
Port count	24
Product Family	1U Multimode Panel
Product Group	LC Fibre Panels

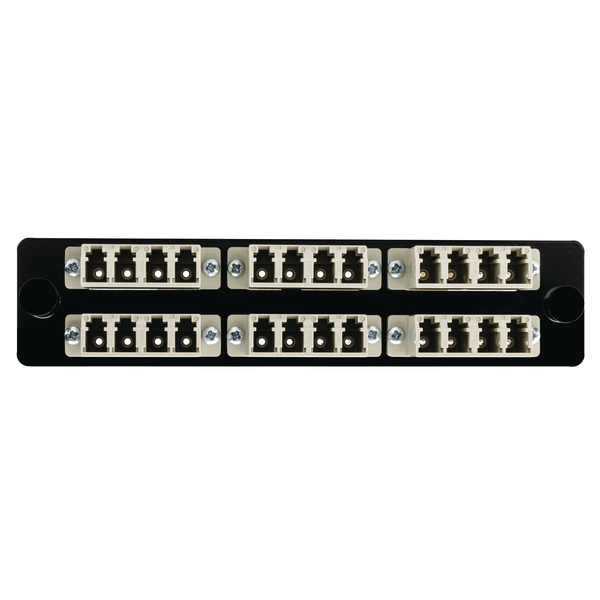

Technical Description	The LC Multimode Fibre Panel presents up to a maximum of 96 LC fibres (using LC Quad Adaptors) in 1U of space. The 1U sliding drawer can be locked into position using two simple to operate catches. When fully extended the drawer is designed to lower to 45° giving access to the panel. The drawer can also be locked to a lower maximum of 10°, providing the perfect working platform during installation and maintenance, by sliding the drawer sideways. The rear drawer offers a number of cable options including 4 x 10mm and 2 x 20mm gland holes and has a removable section in the centre for specialist cables and patch leads. In addition the base of the tray has cable securing points and cable management holes for securing Fibre Optic Management (FOM). Adjustable mounting ears allow the panel to be positioned within the rack or frame.
Type	FAP12DMMLC
