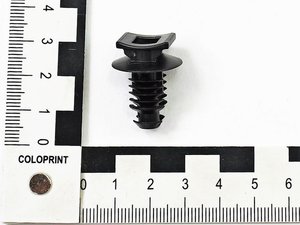

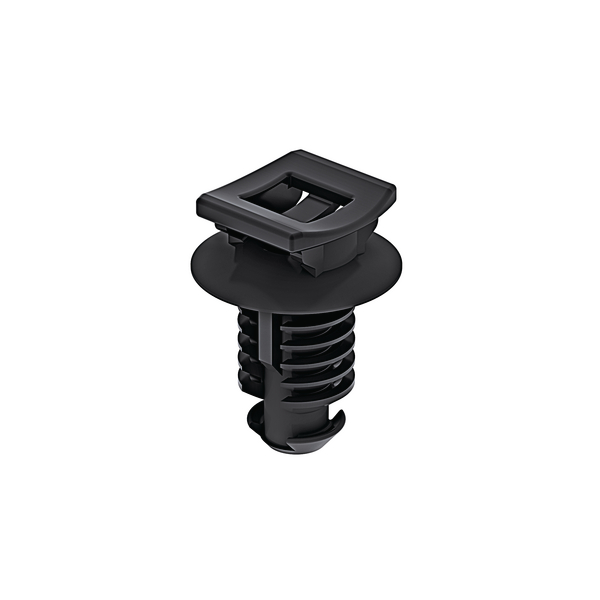

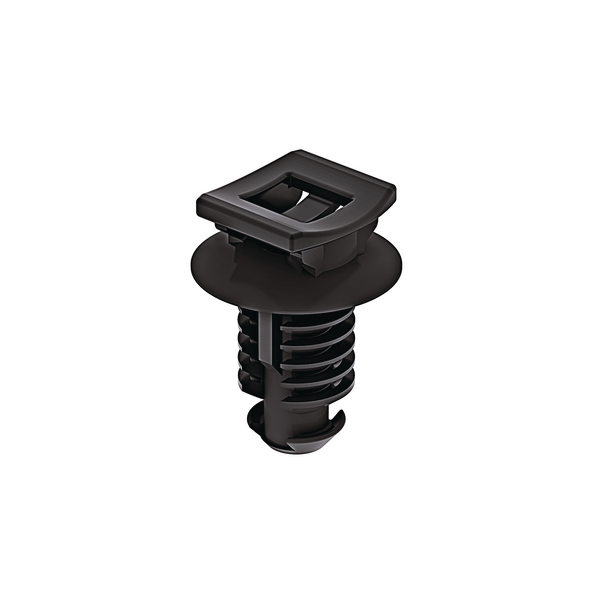

FT9-PA66HIRHS-BK
Art.-Nr. 150-27795 | FT9-PA66HIRHS-BK |  Details

    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Application Method Can only be mounted with a tool, like a hammer.
    Colour Black (BK)
    Fixation Method Fir Tree
    Material Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
    PART DESCRIPTION FT9-PA66HIRHS-BK

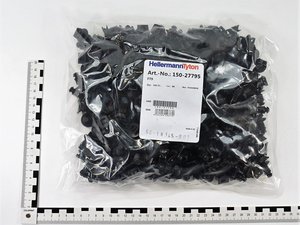

    Pack Cont. 300pcs.
    Package Content packed in pcs.
    Type FT9

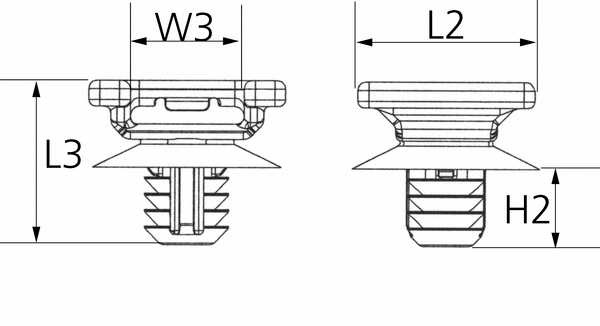

    Height (H) 27.0mm
    Length (L) 15.0mm
    Panel Thickness max. 5.0 - 11.0mm
    Weight/Unit 0.00156kg
    Width (W) 20.0mm
    for Hole ∅ (FH) 9.0 - 10.6 mm
    for Panel Thickness min - max 5 - 11 mm
    ELV compliant (Article 4 - 2) YES
    Hazardous Goods No
    Nato number 5975-12-377-4360
    ROHS compliant Yes
    Specifications
    Country of Origin DE
    Customs Number 39269097
    GTIN-13 / EAN 4031026193779
    Packaging 1 - Height (m) 0.15m
    Packaging 1 - Length (m) 0.3m
    Packaging 1 - Qty 300
    Packaging 1 - Type bag
    Packaging 1 - Volume (m³) 0.0117m³
    Packaging 1 - Weight (kg) 0.481862kg
    Packaging 1 - Width (m) 0.26m
    Packaging 3 - Height (m) 0.368m
    Packaging 3 - Length (m) 0.584m
    Packaging 3 - Qty 9000
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.083m³
    Packaging 3 - Weight (kg) 15.27586kg
    Packaging 3 - Width (m) 0.386m
    Packaging 4 - Height (m) 1.248m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 108000
    Packaging 4 - Type pallet
    Packaging 4 - Volume (m³) 1.198m³
    Packaging 4 - Weight (kg) 204.36kg
    Packaging 4 - Width (m) 0.8m
    ETIM 7.0 Key EC000449
    ETIM 8.0 Key EC000449
    ETIM 9.0 Key EC000449
    UNSPSC Key 39121717
