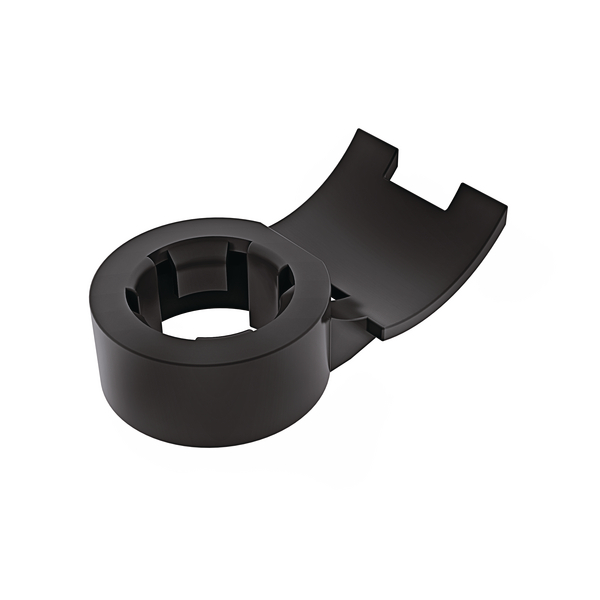

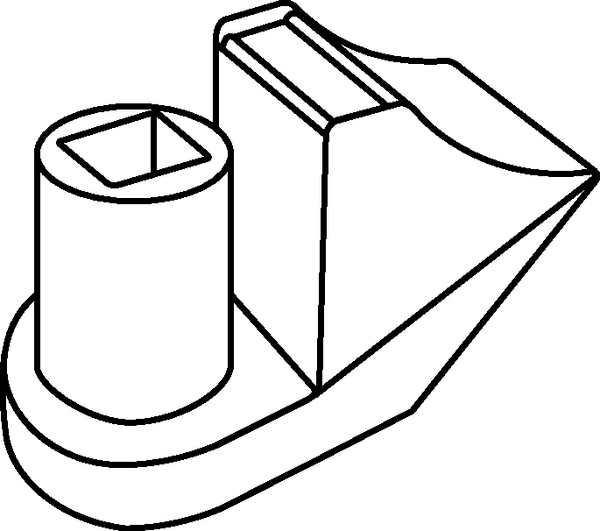

Cable tie mount for stud, ∅M12, M12 Screw, black, 500pcs.
Art.-Nr. 151-01308 | SBU-M12-PA66HIRHS-BK |  Details

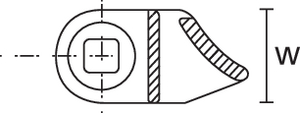

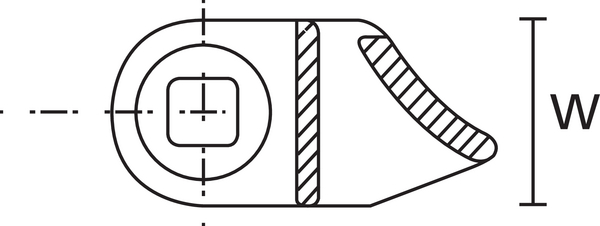

SBH2 allow cables to run at 90° to the panel.

    • Simple and quick method of fixing

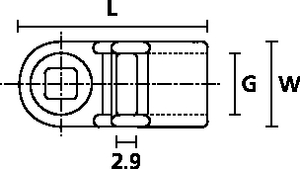

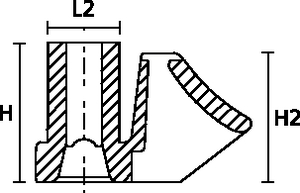

    • SBH1 and SBH3 allow cables to run across the panel
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads

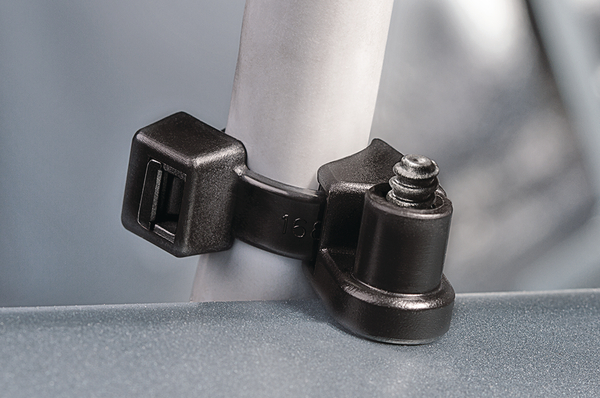

    Application Many industries (but specifically the automotive market) are using weld studs as the standard method of attaching components. Simply hammered onto the stud these parts provide ideal fixing bases for attaching cables, pipes or hose. The use of weld studs avoids the problems with holes (ingress of moisture, corrosion etc).
    Colour Black (BK)
    Material Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
    Mounting Screw Type M12 Screw
    PART DESCRIPTION SBU-M12-PA66HIRHS-BK
    Pack Cont. 500pcs.
    Package Content packed in bag
    Product Family SB-Series
    Product Group Fixing elements for weld studs
    Type SBU-M12

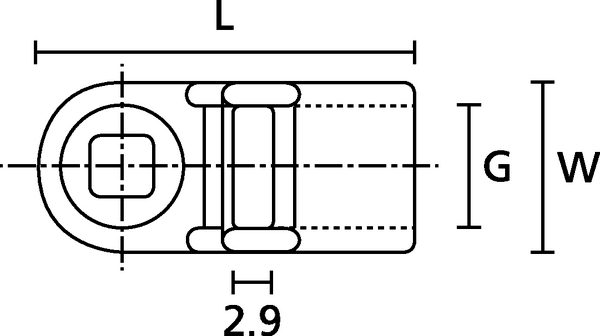

    Length (L) 37.0mm
    Stud ∅ M12
    Weight/Unit 0.00225kg
    Width (W) 19.0mm
    ELV compliant (Article 4 - 2) YES
    Hazardous Goods No
    Operating Temperature -40 °C to +105 °C
    ROHS compliant Yes
    Specifications
    Country of Origin CN
    Customs Number 39269097
    GTIN-13 / EAN 4031026510712
    Packaging 1 - Qty 500
    Packaging 1 - Type bag
    Packaging 1 - Weight (kg) 1.125001kg
    Packaging 3 - Height (m) 0.2m
    Packaging 3 - Length (m) 0.59m
    Packaging 3 - Qty 4000
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.046m³
    Packaging 3 - Weight (kg) 9.820008kg
    Packaging 3 - Width (m) 0.39m
    Packaging 4 - Height (m) 1.144m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 80000
    Packaging 4 - Type pallet
    Packaging 4 - Volume (m³) 1.098m³
    Packaging 4 - Weight (kg) 217.4kg
    Packaging 4 - Width (m) 0.8m
    ETIM 7.0 Key EC000449
    ETIM 8.0 Key EC000449
    ETIM 9.0 Key EC000449
    UNSPSC Key 39121717
