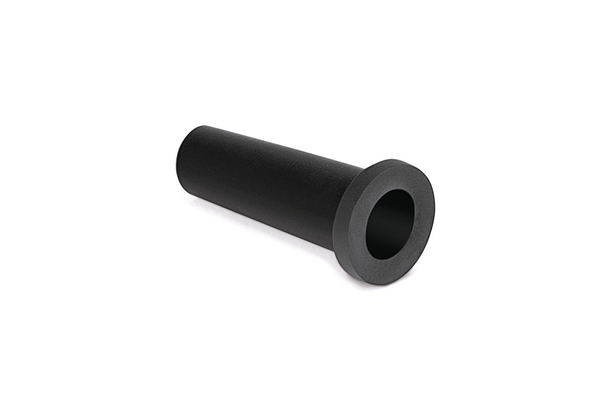

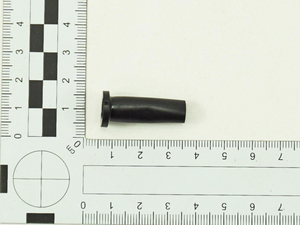

Cable grommet, ∅8.8 mm, black, 1000pcs.
Art.-Nr. 632-02100 | HV2210-PVC-FR-BK |  Details

Bend Protection Grommet - HV2210.

    • Routes cables free of kinks and breakage
    • Provides strain relief
    • Flexible and easy to apply
    • High resistance to chemicals und environmental influences
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Application Bend protection grommets are typically used to protect cables and wires at the apertures in casings.
    Cable ∅ max 7.5mm
    Cable ∅ min 6.5mm
    Colour Black (BK)
    Material Polyvinylchloride, flame retardant (PVC-FR)
    PART DESCRIPTION HV2210-PVC-FR-BK

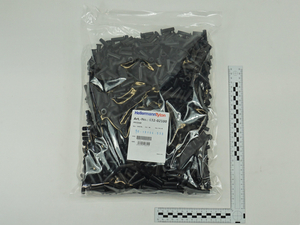

    Pack Cont. 1000pcs.
    Package Content packed in pcs.
    Product Family Bend protection grommets
    Product Group Bend protection grommets
    Short Description Bend protection grommets black, outside diameter: 13.0mm, inside diameter: 7.5mm
    Type HV2210
    Variant Open

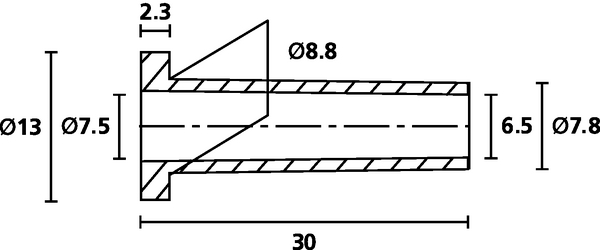

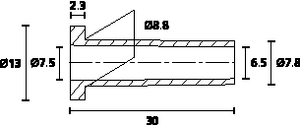

    Diameter (D) 7.5mm
    Length (L) 30.0mm
    Outside Ø (OD) 13.0mm
    Outside ∅ (OD2) 7.8mm
    Shore Hardness A 55±5
    Weight/Unit 0.0009kg
    for Hole ∅ (FH) 8.8 mm
    ∅ (D2) 6.5mm
    ELV compliant (Article 4 - 2) YES
    Flammability UL 94 V0
    Halogen-free No
    Hazardous Goods No
    Operating Temperature -30 °C to +60 °C
    ROHS compliant Yes
    Specifications
    Country of Origin DE
    Customs Number 39269097
    GTIN-13 / EAN 4031026186115
    Packaging 1 - Height (m) 0.15m
    Packaging 1 - Length (m) 0.3m
    Packaging 1 - Qty 1000
    Packaging 1 - Type bag
    Packaging 1 - Volume (m³) 0.01845m³
    Packaging 1 - Weight (kg) 0.921815kg
    Packaging 1 - Width (m) 0.41m
    ETIM 7.0 Key EC000879
    ETIM 8.0 Key EC000879
    ETIM 9.0 Key EC000879
