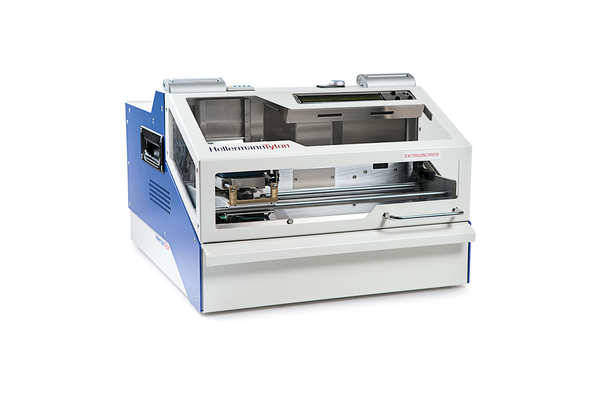

Stainless steel embossing machine, with Organiser, 558x480x355mm
Art.-Nr. 544-21000
| M-BOSS Compact Organiser-MET-BU/WH
|
Details
- Ability to manage how the printed marker plates are organised

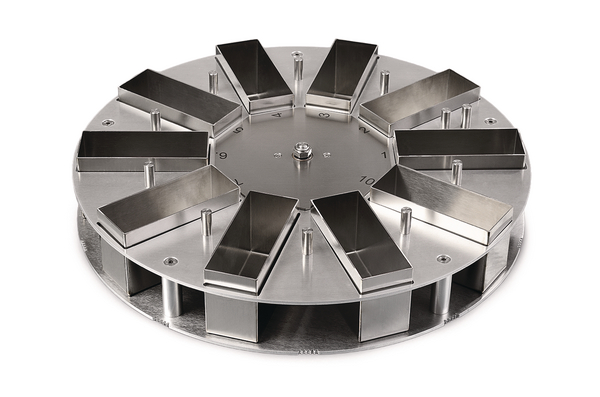

- Carousel system under the printer has 10 removable marker plate containers
- Flexible output means all marker plates or a set amount can be sent to each container
- Carousel system will hold up to 400 markers
- Each container can hold 40 marker plates
![](https://www.hellermanntyton.com/shared/speclogos/99593_All_Languages.jpg)
![](https://www.hellermanntyton.com/shared/speclogos/99595_All_Languages.jpg)
![](https://www.hellermanntyton.com/shared/speclogos/22007_All_Languages.jpg)
Request your individual offer now
Request quote
More products in this product group:

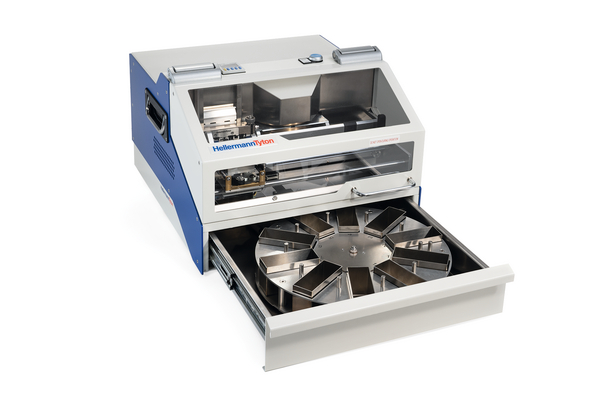

Application | The M-BOSS Compact with included Organiser system gives the added advantage of a self-contained storage system within the print unit. The organiser is a 10 container carousel storage system that can be programmed to hold either an individual or a pre-defined set of marker plates. This means that users have the flexibility to manage how they work with the printed output. A simple input screen on the top of the machine is used to specify the quantity per container within the carousel. The carousel drawer when opened extends 430 mm from the front of the printer. |
Colour | Blue (BU), White (WH) |
For Ties | MBT5S, MBT8S, MBT14S, MBT20S, MBT27S, MBT33S |
Material | Metal (MET) |
PART DESCRIPTION | M-BOSS Compact Organiser-MET-BU/WH |
Pack Cont. | 1pc. |
Package Content packed in | box |
Product Family | M-BOSS Compact including Organiser |
Product Group | Stainless steel embossing system |
Short Description | Metal Plate Embossing Printer plus 10 Container Carousel Storage System for Metal Marker Plates |
System Requirements | Win 7, 8, 10 |
Type | M-BOSS Compact Organiser |
Variant | with Organiser |
Cycle Time |
|
Depth (D) | 570mm |
Diameter (D) | 370mm |
Height (H) | 355mm |
Length (L) | 558mm |
Memory | 64 MB RAM |
Power Supply | AC 110V-240V, 45/65 Hz, 1.5A-3A |
Print Material Height Max (metric) | 20.0mm |
Print Method | embossing |
Strap Width max. (G) | 0.18" |
Strap Width max. (G) | 4.6mm |
Weight/Unit | 45.0kg |
Width (W) | 480mm |
∅ D | 14.56" |
CAS Number | 7439-92-1 |
CE Certification | No |
CSA Certified | No |
Critical Substance |
Lead in Aluminium alloy |
EC Number | 231-100-4 |
ELV compliant (Article 4 - 2) | YES |
Halogen-free | Yes |
Hazardous Goods | No |
Interfaces | USB 2.0 |
Max. Print Width | 105.6mm |
Max. Print Width | 4.16" |
ROHS compliant | Yes |
Specifications |
![]() ![]() ![]() ![]() |
Specifications | 2006/42/EG, EN 60204-1:2006, EN ISO 12100:2010 |
UV-Stabilised | No |
|
|
Country of Origin | DE |
Customs Number | 84639000 |
Dimensions W x H x D | 480 mm x 355 mm x 570 mm |
GTIN-13 / EAN | 4031026491905 |
Packaging 1 - Height (m) | 0.36m |
Packaging 1 - Length (m) | 0.48m |
Packaging 1 - Qty | 1 |
Packaging 1 - Type | pcs. |
Packaging 1 - Volume (m³) | 0.0985m³ |
Packaging 1 - Weight (kg) | 45.0kg |
Packaging 1 - Width (m) | 0.57m |
Packaging 3 - Height (m) | 0.5m |
Packaging 3 - Length (m) | 0.65m |
Packaging 3 - Qty | 1 |
Packaging 3 - Type | carton |
Packaging 3 - Volume (m³) | 0.195m³ |
Packaging 3 - Weight (kg) | 50.0kg |
Packaging 3 - Width (m) | 0.6m |
Packaging 4 - Height (m) | 0.644m |
Packaging 4 - Length (m) | 1.2m |
Packaging 4 - Qty | 1 |
Packaging 4 - Type | pallet |
Packaging 4 - Volume (m³) | 0.618m³ |
Packaging 4 - Weight (kg) | 71.0kg |
Packaging 4 - Width (m) | 0.8m |
