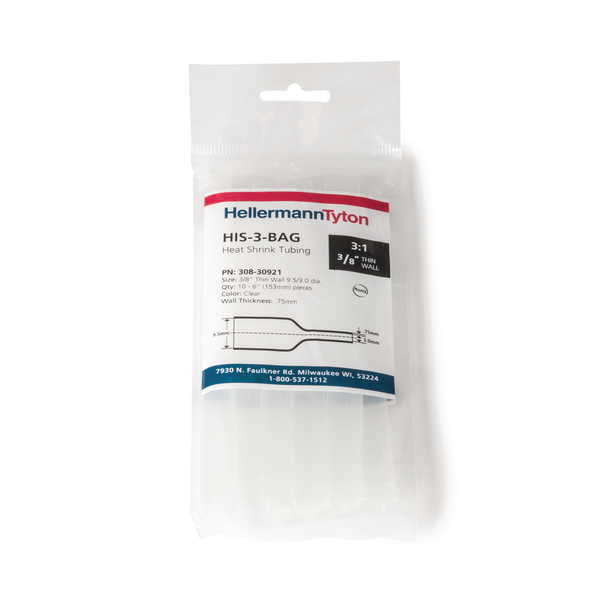

Heat shrinkable tubing 3:1 in blister bags
Art.-Nr. 308-30921 | HIS-3-BAG 9/3 CL-PO-X-CL | Details

Request your individual offer now

Request quote

More products in this product group:

Application	HIS-3 BAG tubings are useable for insulation and protection of cables and connectors
Behaviour At Low Temperature	not cracking
Behaviour at Heat Shock	not fluid, not dripping, not cracking
Behaviour at low Temperature test method	UL 224
Colour	Transparent (CL)
Elongation At Heat Aging	400%
Heat Aging Test	168h/175°C
Heat Aging test method	UL 224
Heat Shock Test	4h/250°C
Material	Polyolefin, cross-linked (PO-X)
Minimum Tensile Strength At Heat Aging	13MPa
PART DESCRIPTION	HIS-3-BAG 9/3 CL-PO-X-CL
Pack Cont.	10pcs.
Package Content packed in	bag
Printable	No
Product Family	HIS-3 BAG
Product Group	Heat shrinkable tubing 3:1 in blister bags
Shrink Ratio	3:1
Type	HIS-3-BAG 9/3 CL
Variant	Thin-Wall
With inner glue (Yes/No)	No


Length (L)	200mm
Length (L3)	152.4mm
Longitudinal Change After Shrinkage	+/-5%
Nominal ∅	0.38"
Nominal ∅	9.5mm
Recov. ∅ d max.	0.118"
Supplied ∅ D min.	0.38"
Wall (WT)	.029"

CSA Certified	No
Dielectric Strength	32kV/mm
Dielectric Strength test method	IEC 60243
Elongation at break	800
Elongation at break test method	ASTM D2671
Insulation Class	B (VDE 0530)
Min. Shrink Temperature - °C	+100 °C
Operating Temperature	-55 °C to +135 °C
ROHS compliant	Yes
Self extinguishing	No
Specifications	ANSI/UL 224
Specifications
Tensile Strength	14MPa
Test Method Tensile Strength	ASTM D2671
UL Listed (US and Canada)	No
UL Listed (US and Canada)	No
UL OCD link	Link Link
UL Recognized (US and Canada)	No
UL Recognized (US and Canada)	Yes
UL-File Number	E143529
Volume Resistance	10¹⁴ Ω cm
Volume Resistance test method	UL 224
Water Absorption	0.15%
