Heat shrinkable tubing 4:1 - 1.2 m lengths
Art.-Nr. 301-10032
| SA47-LA 18.2/4.35-PO-X-CL
|
Details
- Flexible, standard wall polyolefin heat shrink tubing
- Excellent tensile strength and strain relief
- Provides excellent moisture protection
- Tubing and hot melt adhesive is clear
- Provides an environmental sealing of complex parts
- Halogen free
Request your individual offer now
Request quote
More products in this product group:

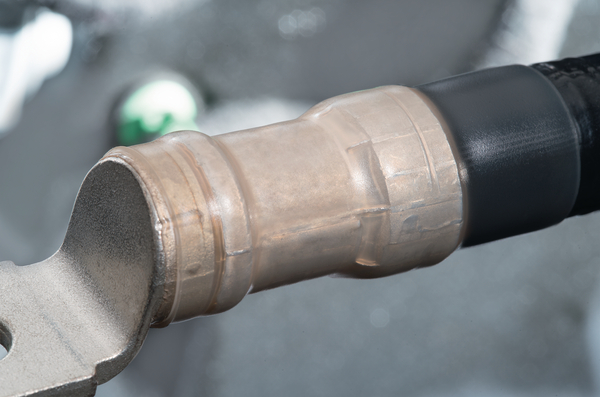

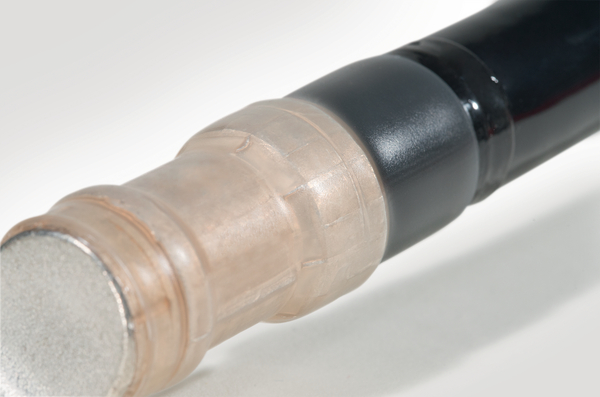

| Application | SA47-LA is a semi-rigid halogen free polyolefin tubing with an inner liner of hot melt adhesive. It has excellent tensile strength and strain relief. The adhesive liner provides excellent moisture protection. Ideal for electrical connections and splices in automobiles. Tubing and hot melt adhesive are transparent. SA47-LA is specially designed with less adhesive for cable connections. |
| Colour | Transparent (CL) |
| Material | Polyolefin, cross-linked (PO-X) |
| PART DESCRIPTION | SA47-LA 18.2/4.35-PO-X-CL |
| Pack Cont. | 1.2m |
| Package Content packed in | pcs. |
| Printable | No |
| Product Family | SA47-LA - standard wall adhesive lined |
| Product Group | Heat shrinkable tubing 4:1 - 1.2 m lengths |
| Shrink Ratio | 4:1 |
| Type | SA47-LA 18.2/4.35 |
| Variant | Thin-Wall |
| With inner glue (Yes/No) | Yes |
Download
| Adhesive | Hot melt adhesive |
| CAS Number | 119-47-1 |
| Critical Substance | BisphenolC23H32O2, 1-5 % |
| Dielectric Strength | 20kV/mm |
| EC Number | 204-327-1 |
| ELV compliant (Article 4 - 2) | YES |
| Elongation at break | 450% |
| Halogen-free | Yes |
| Hazardous Goods | No |
| Melting Point | starting from +110 °C |
| Min. Shrink Temperature - °C | +130 °C |
| Operating Temperature | -40 °C to +125 °C, (+150 °C, 240 h) |
| ROHS compliant | Yes |
| Specifications |
|
| Tensile Strength | 14MPa |
| Volume Resistance | 10¹³ Ω cm |
| Water Absorption | 0.5% |
| Country of Origin | JP |
| Customs Number | 39173200 |
| GTIN-13 / EAN | 4031026579269 |
| Packaging 1 - Height (m) | 0.04m |
| Packaging 1 - Length (m) | 1.4m |
| Packaging 1 - Qty | 15 |
| Packaging 1 - Type | bag |
| Packaging 1 - Volume (m³) | 0.01288m³ |
| Packaging 1 - Weight (kg) | 0.883kg |
| Packaging 1 - Width (m) | 0.23m |
| Packaging 2 - Type | bag |
| Packaging 3 - Height (m) | 0.19m |
| Packaging 3 - Length (m) | 1.27m |
| Packaging 3 - Qty | 75 |
| Packaging 3 - Type | carton |
| Packaging 3 - Volume (m³) | 0.0615m³ |
| Packaging 3 - Weight (kg) | 5.038kg |
| Packaging 3 - Width (m) | 0.255m |
| Packaging 4 - Height (m) | 0.964m |
| Packaging 4 - Length (m) | 1.2m |
| Packaging 4 - Qty | 975 |
| Packaging 4 - Type | pallet |
| Packaging 4 - Volume (m³) | 0.925m³ |
| Packaging 4 - Weight (kg) | 117.36kg |
| Packaging 4 - Width (m) | 0.8m |
