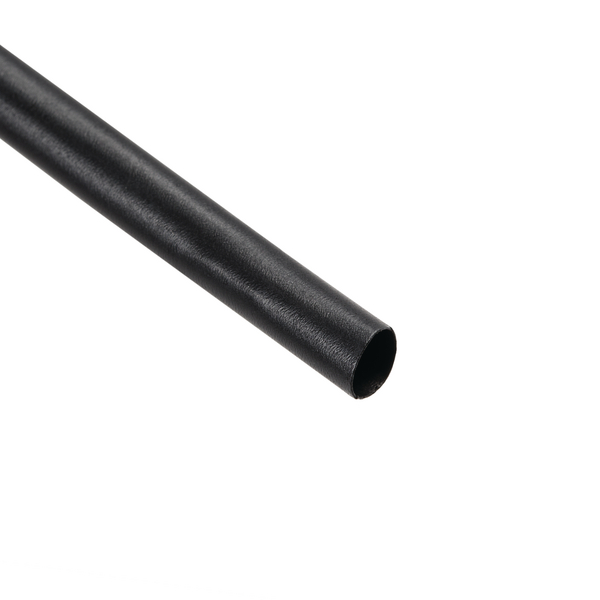

Heat shrinkable tubing up to 4:1 - 1 m lengths
Art.-Nr. 321-50016 | TREDUX HA47-48ST-85/25-PO-X-BK |  Details

HA47 - Halogenfree 4:1 Heavy Dual Wall Heat Shrink Tubing.

    • Thick wall polyolefin adhesive-lined tubing
    • 1 m shrink tubing lengths delivered in handy display carton
    • All tubes can be sold in single 1 meter lengths or entire box
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Application The toughness and weatherability make TREDUX thick wall tubing suitable for exposed applications and underground cable joints.
    Colour Black (BK)
    Material Polyolefin, cross-linked (PO-X)
    PART DESCRIPTION TREDUX HA47-48ST-85/25-PO-X-BK
    Pack Cont. 1pc.
    Package Content packed in pcs.
    Printable No
    Product Family TREDUX HA47 - thick wall adhesive lined
    Product Group Heat shrinkable tubing up to 4:1 - 1 m lengths
    Shrink Ratio up to 3.5:1
    Type TREDUX HA47-48ST-85/25
    Variant Thick-Wall
    Voltage range Low Voltage
    With inner glue (Yes/No) Yes
    Length (L) 1.0m
    Longitudinal Change After Shrinkage -10% max.
    Nominal ∅ 3.25"
    Nominal ∅ 85mm
    Recov. ∅ d max. 25.0mm
    Recov. ∅ d max. 0.984"
    Supplied ∅ D min. 3.346"
    Supplied ∅ D min. 85.0mm
    Wall (WT) 4.3mm
    Wall (WT) .169"
    Adhesive Hot melt adhesive
    CE Certification No
    CSA Certified No
    Dielectric Strength 20kV/mm
    Elongation at break 400%
    Halogen-free Yes
    Min. Shrink Temperature - °C +120 °C
    Operating Temperature -55 °C to +110 °C, (outer wall only)
    ROHS compliant Yes
    Softening Point Adhesive +85 °C
    Specifications
    Tensile Strength 14MPa
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UL Recognized (US and Canada) No
    UV-Stabilised No
    Volume Resistance 10¹⁴ Ω cm
    Country of Origin CN
    GTIN-13 / EAN 4031026480084
    Packaging 1 - Weight (kg) 1.26kg
    ETIM 7.0 Key EC000217
    ETIM 8.0 Key EC000217
    ETIM 9.0 Key EC000217
    UNSPSC Key 39121723
