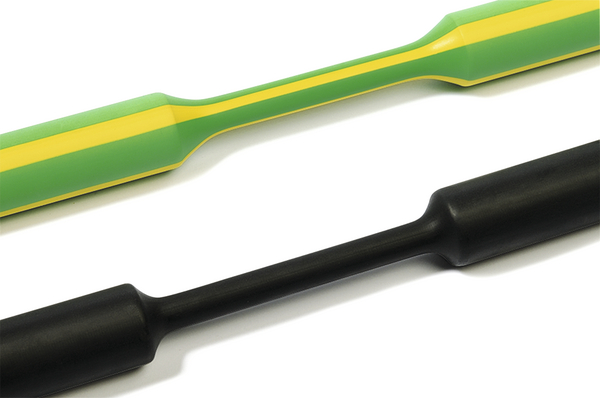

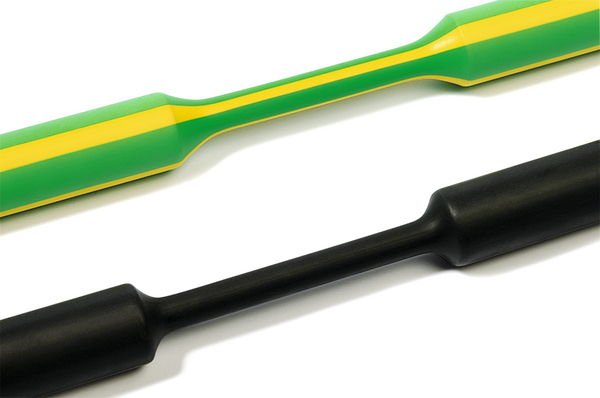

Heat shrinkable tubing up to 3:1 - 1 m lengths
Art.-Nr. 319-30100
| TREDUX Starter Kit-PO-X-BK/YE
|
Details
Request your individual offer now
Request quote
More products in this product group:
Application | TREDUX thin wall heat shrink tubing is used for general electrical insulation and mechanical protection of cables and wires. |
Application Tool | H6100 |
Behaviour at Heat Shock | not fluid, not dripping, not cracking |
Behaviour at low Temperature test method | UL 224 |
Colour | Black (BK), Yellow (YE) |
Elongation At Heat Aging | 400% |
Heat Aging Test | 168h/175°C |
Heat Shock Test | 4h/250°C |
Heat shock test test method | UL 224 |
Material | Polyolefin, cross-linked (PO-X) |
Minimum Tensile Strength At Heat Aging | 11MPa |
PART DESCRIPTION | TREDUX Starter Kit-PO-X-BK/YE |
Pack Cont. | 1pc. |
Package Content packed in | pcs. |
Printable | No |
Product Family | TREDUX - thin wall |
Product Group | Heat shrinkable tubing up to 3:1 - 1 m lengths |
Shrink Ratio | 2:1 from 38.1/19.1 mm to 101.6/50.8 mm, 3:1 from 1.5/0.5 mm to 24/8 mm |
Type | TREDUX Starter Kit |
Variant | Thin-Wall |
Voltage range | 600 V |
With inner glue (Yes/No) | No |
Copper corrosion | tested according to UL 224 |
Dielectric Strength | 20kV/mm |
Dielectric Strength test method | IEC 60243 |
Elongation at break | 6 |
Elongation at break test method | ASTM D2671 |
Flammability | UL 224 VW-1 |
Insulation Class | B (VDE 0530) |
Min. Shrink Temperature - °C | +70 °C |
Operating Temperature | -55 °C to +135 °C |
ROHS compliant | Yes |
Specifications | |
Tensile Strength | 14MPa |
Tensile Strength test method | IEC 93 |
Test Method Tensile Strength | ASTM D2671 |
UL Listed (US and Canada) | No |
UL OCD link | Link Link |
UL Recognized (US and Canada) | Yes |
UL-File Number | E143529 |
Volume Resistance | 10¹⁴ Ω cm |
Water Absorption | 0.2% |
