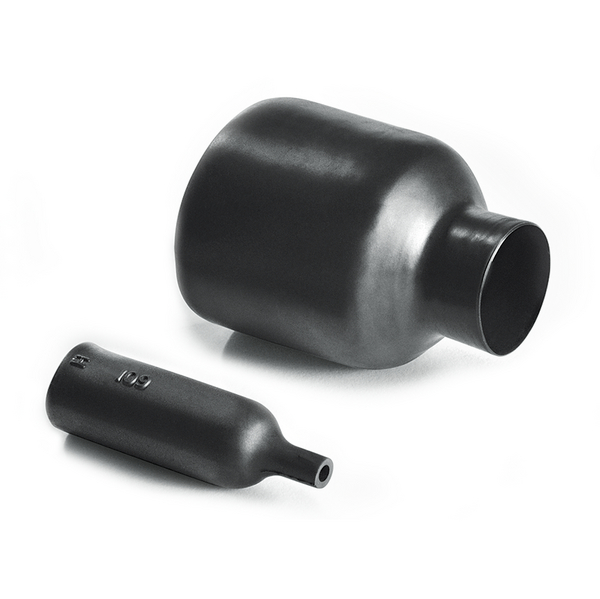

Bottle Shapes
Art.-Nr. 410-37005 | 1037-5-L-FPMX-BK |  Details

100 series supplied / fully recovered.

    • Strain relief for connector cable
    • Easy re-entry for repair when combined with hot melt adhesive
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Application Heat Shrinkable moulded shapes for use in Electrical and Electronic Cable Harness Applications.
    Colour Black (BK)
    Material Fluoropolymer, cross-linked (FPMX)
    PART DESCRIPTION 1037-5-L-FPMX-BK
    Pack Cont. 1pc.
    Product Family Helashrink 100 Series
    Product Group Bottle Shapes
    Type 1037-5-L
    Flexibility Flexible
    HW ± 20 % 1.2mm
    JW ± 30 % 0.8mm
    P ± 10 % 19mm
    R ± 10 % 9mm
    S ± 10 % 4.5mm
    T ± 20 % 0.6mm
    ∅H max. b 5.6mm
    ∅H min. a 9mm
    ∅J max. b 2mm
    ∅J min. a 4mm
    Dielectric Strength 9kV/mm
    Dielectric Strength test method ASTM D2671
    Flammability ASTM D635
    Min. Shrink Temperature - °C +135 °C
    Operating Temperature -55 °C to +200 °C
    ROHS compliant Yes
    Specifications
    Tensile Strength 13MPa
    UV-Stabilised No
    Country of Origin GB
    GTIN-13 / EAN 5022660665486
    Packaging 1 - Height (m) 0.020m
    Packaging 1 - Length (m) 0.120m
    Packaging 1 - Qty 1
    Packaging 1 - Type bag
    Packaging 1 - Volume (m³) 0.00024m³
    Packaging 1 - Weight (kg) 0.001kg
    Packaging 1 - Width (m) 0.100m
    ETIM 7.0 Key EC002464
    ETIM 8.0 Key EC002464
    ETIM 9.0 Key EC002464
    UNSPSC Key 39121721
