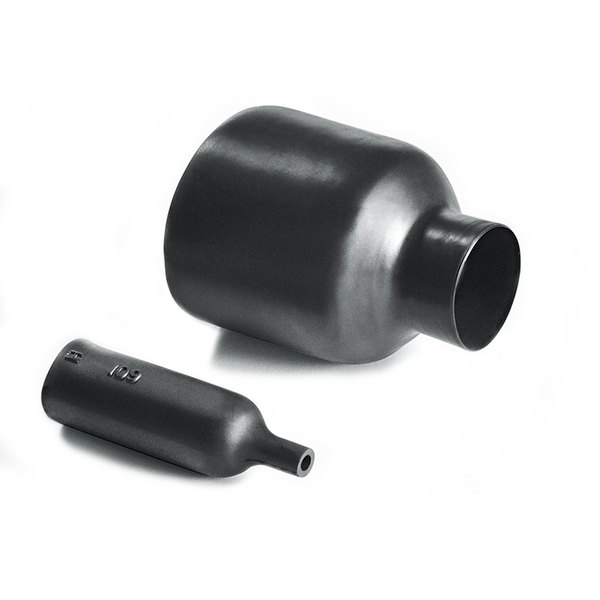

Bottle Shapes
Art.-Nr. 401-08021 | 108-1-G-PO-X-BK |  Details

100 series supplied / fully recovered.

    • Strain relief for connector cable
    • Easy re-entry for repair when combined with hot melt adhesive
    • For mechanical protection and protection against environment impacts
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Application Heat Shrinkable moulded shapes for use in Electrical and Electronic Cable Harness Applications.
    Colour Black (BK)
    Material Polyolefin, cross-linked (PO-X)
    PART DESCRIPTION 108-1-G-PO-X-BK
    Pack Cont. 1pc.
    Package Content packed in bag
    Product Family Helashrink 100 Series, without rib
    Product Group Bottle Shapes
    Type 108-1-G
    Variant Thick-Wall
    Flexibility semi rigid
    HW ± 20 % 1.5mm
    JW ± 30 % 1mm
    P ± 10 % 38.1mm
    R max. 22.9mm
    S nom. 7.6mm
    Weight/Unit 0.002kg
    ∅H max. b 10.4mm
    ∅H min. a 13.7mm
    ∅J max. b 0.1mm
    ∅J min. a 6.6mm
    Dielectric Strength 14kV/mm
    Dielectric Strength test method ASTM D2671
    Flammability ASTM D635
    Min. Shrink Temperature - °C +135 °C
    Operating Temperature -75 °C to +150 °C
    ROHS compliant Yes
    Specifications
    Tensile Strength 15MPa
    UV-Stabilised No
    Country of Origin GB
    GTIN-13 / EAN 5022660686368
    Packaging 1 - Height (m) 0.030m
    Packaging 1 - Length (m) 0.160m
    Packaging 1 - Qty 1
    Packaging 1 - Type bag
    Packaging 1 - Volume (m³) 0.00048m³
    Packaging 1 - Weight (kg) 0.002kg
    Packaging 1 - Width (m) 0.100m
    ETIM 7.0 Key EC002464
    ETIM 8.0 Key EC002464
    ETIM 9.0 Key EC002464
    UNSPSC Key 39121721
