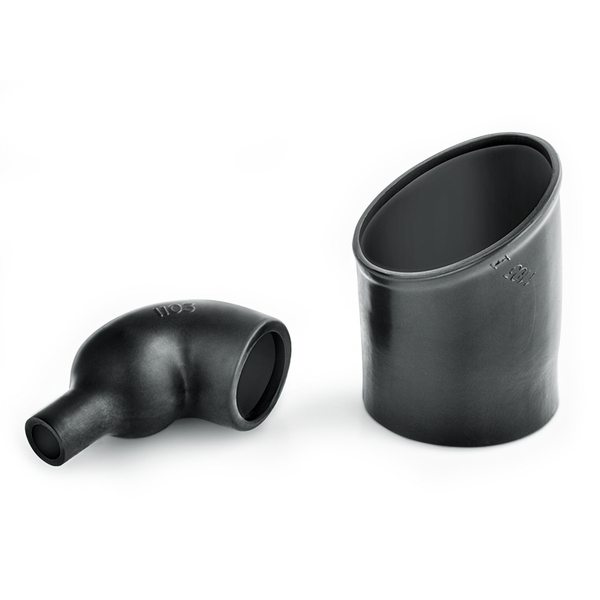

Right-Angle Shapes, MIL style
Art.-Nr. 411-01022 | 1101-4-J-PO-X-BK |  Details

1108-4 supplied / fully recovered.

    • Used in conjunction with a circular grooved adaptor for strain relief
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Application Heat Shrinkable moulded shapes for use in Electrical and Electronic Cable Harness Applications.
    Colour Black (BK)
    Material Polyolefin, cross-linked (PO-X)
    PART DESCRIPTION 1101-4-J-PO-X-BK
    Pack Cont. 1pc.
    Package Content packed in bag
    Product Family Helashrink 1100 Series, with rib
    Product Group Right-Angle Shapes, MIL style
    Type 1101-4-J
    Variant For plug
    Angle 90
    Flexibility Flexible
    HW ± 20 % 2mm
    JW ± 30 % 2mm
    M nom. 27.9mm
    P ± 10 % 53.3mm
    R ± 10 % 43.2mm
    T ± 20 % 1.7mm
    V max. 3.3mm
    Weight/Unit 0.014kg
    ∅H max. b 27.9mm
    ∅H min. a 42.6mm
    ∅J max. b 9.7mm
    ∅J min. a 42.6mm
    Designation as per VG-Norm VG 95343 T06 F 009 A
    Dielectric Strength 18kV/mm
    Dielectric Strength test method ASTM D2671
    Flammability ASTM D635
    Min. Shrink Temperature - °C +135 °C
    Nato number 5975-00-025-7947
    Operating Temperature -55 °C to +135 °C
    ROHS compliant Yes
    Specifications
    Tensile Strength 19MPa
    UV-Stabilised No
    Country of Origin GB
    GTIN-13 / EAN 5022660407260
    Packaging 1 - Height (m) 0.050m
    Packaging 1 - Length (m) 0.200m
    Packaging 1 - Qty 1
    Packaging 1 - Type bag
    Packaging 1 - Volume (m³) 0.0012m³
    Packaging 1 - Weight (kg) 0.014kg
    Packaging 1 - Width (m) 0.120m
    ETIM 7.0 Key EC002464
    ETIM 8.0 Key EC002464
    ETIM 9.0 Key EC002464
    UNSPSC Key 39121721
