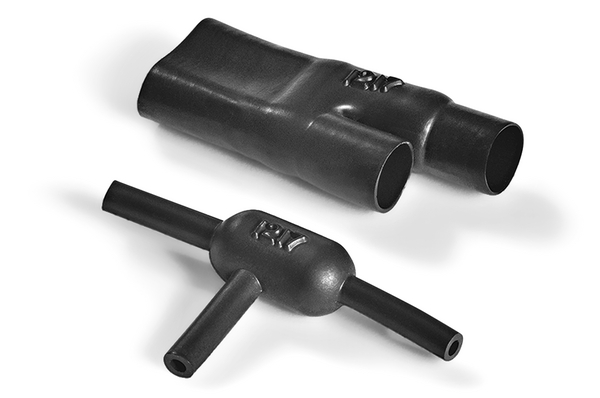

T-Shapes
Art.-Nr. 412-23002 | 1223-1-G-PO-X-BK |  Details

1217-1 supplied / fully recovered.

    • Provides strain relief, sealing and mechanical protection where a cable transition is required on the harness
    • Recommended to use an adhesive if environmental sealing is required.
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Application Heat Shrinkable moulded shapes for use in Electrical and Electronic Cable Harness Applications.
    Colour Black (BK)
    Material Polyolefin, cross-linked (PO-X)
    PART DESCRIPTION 1223-1-G-PO-X-BK
    Pack Cont. 1pc.
    Package Content packed in bag
    Product Family Helashrink 1200 Series, Offset
    Product Group T-Shapes
    Type 1223-1-G
    Variant For 2-core cables
    Flexibility semi rigid

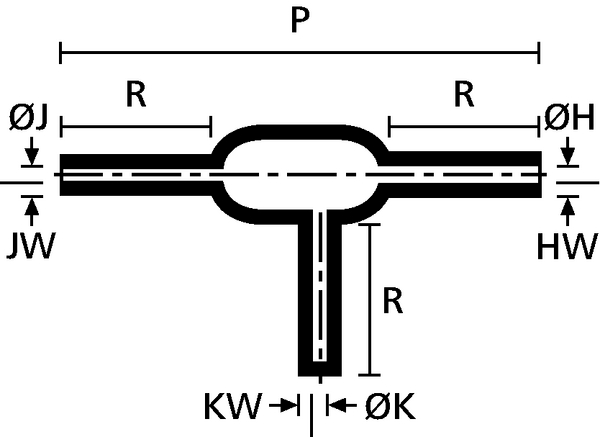

    HW ± 20 % 2.5mm
    JW ± 20 % 1.8mm
    KW ± 20 % 2.5mm
    P ± 10 % 93.2mm
    R ± 10 % 56.6mm
    S ± 10 % 56.6mm

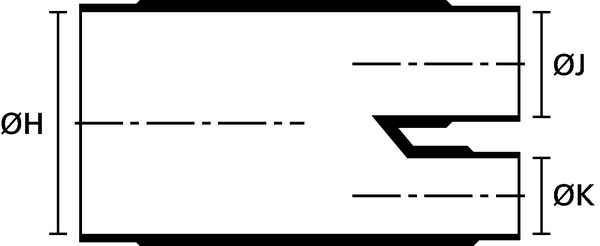

    ∅H max. b 16.3mm
    ∅H min. a 29.5mm
    ∅J max. b 5.3mm
    ∅J min. a 9.6mm
    ∅K max. b 16.3mm
    ∅K min. a 29.5mm
    Dielectric Strength 14kV/mm
    Dielectric Strength test method ASTM D2671
    Flammability ASTM D635
    Min. Shrink Temperature - °C +135 °C
    Nato number 5970-99-756-8113
    Operating Temperature -75 °C to +150 °C
    ROHS compliant Yes
    Specifications
    Tensile Strength 15MPa
    Country of Origin GB
    GTIN-13 / EAN 5022660420962
    ETIM 7.0 Key EC002464
    ETIM 8.0 Key EC002464
    ETIM 9.0 Key EC002464
    UNSPSC Key 39121721
