Angle Elbow Shapes
Art.-Nr. 414-03006 | 1403-1-J-PO-X-BK |  Details

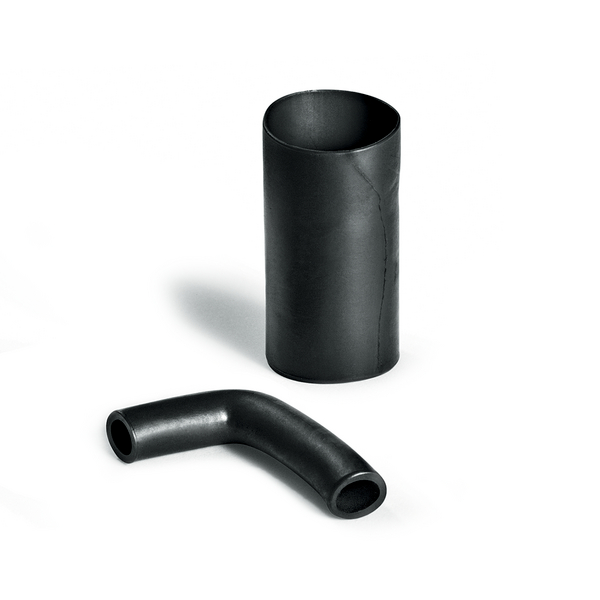

1403-1 supplied / fully recovered.

    • Provides strain relief and mechanical protection on cable orientations of up to 90°
    • Efficient design and numerous material/adhesive combinations
    • Provide quick and easy installation across a range of applications
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Application Heat Shrinkable moulded shapes for use in Electrical and Electronic Cable Harness Applications.
    Colour Black (BK)
    Material Polyolefin, cross-linked (PO-X)
    PART DESCRIPTION 1403-1-J-PO-X-BK
    Pack Cont. 1pc.
    Package Content packed in bag
    Product Family Helashrink 1400 Series, 90° angle
    Product Group Angle Elbow Shapes
    Type 1403-1-J
    Angle 90
    Flexibility Flexible
    HW ± 20 % 2.3mm
    JW ± 20 % 2.3mm
    P ± 10 % 44.5mm
    R ± 10 % 25.4mm
    W ± 20 % 1.5mm
    Weight/Unit 0.028kg
    ∅H max. b 7.9mm
    ∅H min. a 15.7mm
    ∅J max. b 7.9mm
    ∅J min. a 15.7mm
    Flammability ASTM D635
    Min. Shrink Temperature - °C +135 °C
    Operating Temperature -55 °C to +135 °C
    ROHS compliant Yes
    Shelf Life 5 years
    Specifications
    Tensile Strength 19MPa
    UV-Stabilised No
    Country of Origin GB
    GTIN-13 / EAN 5022660427954
    Packaging 1 - Height (m) 0.030m
    Packaging 1 - Length (m) 0.160m
    Packaging 1 - Qty 1
    Packaging 1 - Type bag
    Packaging 1 - Volume (m³) 0.00048m³
    Packaging 1 - Weight (kg) 0.028001kg
    Packaging 1 - Width (m) 0.100m
    ETIM 7.0 Key EC002464
    ETIM 8.0 Key EC002464
    ETIM 9.0 Key EC002464
    UNSPSC Key 39121721
