Bottle Shapes, VG style
Art.-Nr. 401-52021 | 152-42-H-PO-X-BK |  Details

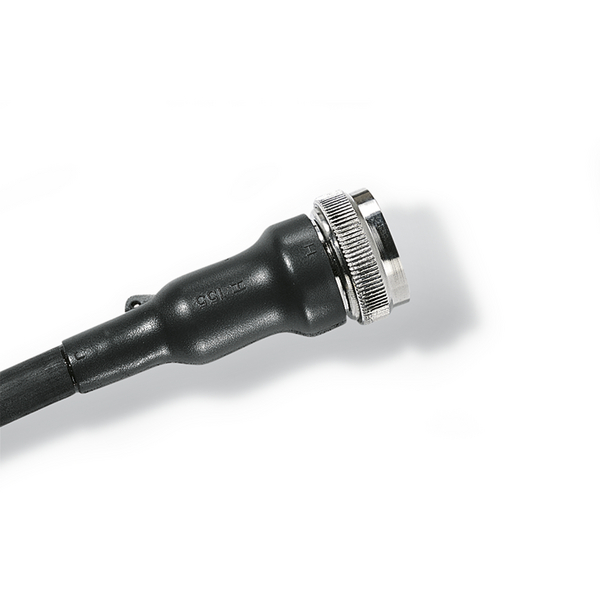

150 Series boot recovered onto a connectors.

    • Use in conjunction with circular grooved adaptors
    • Strengthened strain relief by usage of an additional inner lip
    • Excellent protection against environment impacts
    • Eliminates moisture ingress to harness
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Application Heat Shrinkable moulded shapes for use in Electrical and Electronic Cable Harness Applications.
    Colour Black (BK)
    Material Polyolefin, cross-linked (PO-X)
    PART DESCRIPTION 152-42-H-PO-X-BK
    Pack Cont. 1pc.
    Package Content packed in bag
    Product Family Helashrink 150 Series, with rib
    Product Group Bottle Shapes, VG style
    Shrink Ratio 4:1
    Type 152-42-H
    Variant For plug
    Flexibility semi rigid
    HW ± 20 % 1.6mm
    JW ± 20 % 0.5mm
    JW ± 30 % 1.0mm
    P ± 10 % 38mm
    R nom. 21mm
    R ± 10 % 21mm
    S nom. 10mm
    T ± 20 % 1.0mm
    V ± 10 % 3.0mm
    Weight/Unit 0.004kg
    ∅H max. b 10.5mm
    ∅H min. a 24mm
    ∅J max. b 6mm
    ∅J min. a 24mm
    Dielectric Strength 15kV/mm
    Dielectric Strength test method ASTM D2671
    Flammability ASTM D635
    Min. Shrink Temperature - °C +135 °C
    Nato number 5970-99-780-0443
    Operating Temperature -55 °C to +105 °C
    ROHS compliant Yes
    Shelf Life 5 years
    Specifications
    Specifications VG 95343 NAVSEA 5617649
    UV-Stabilised No
    Country of Origin GB
    GTIN-13 / EAN 5022660430824
    Packaging 1 - Height (m) 0.020m
    Packaging 1 - Length (m) 0.120m
    Packaging 1 - Qty 1
    Packaging 1 - Type bag
    Packaging 1 - Volume (m³) 0.00024m³
    Packaging 1 - Weight (kg) 0.004001kg
    Packaging 1 - Width (m) 0.100m
    ETIM 7.0 Key EC002464
    ETIM 8.0 Key EC002464
    ETIM 9.0 Key EC002464
    UNSPSC Key 39121721
