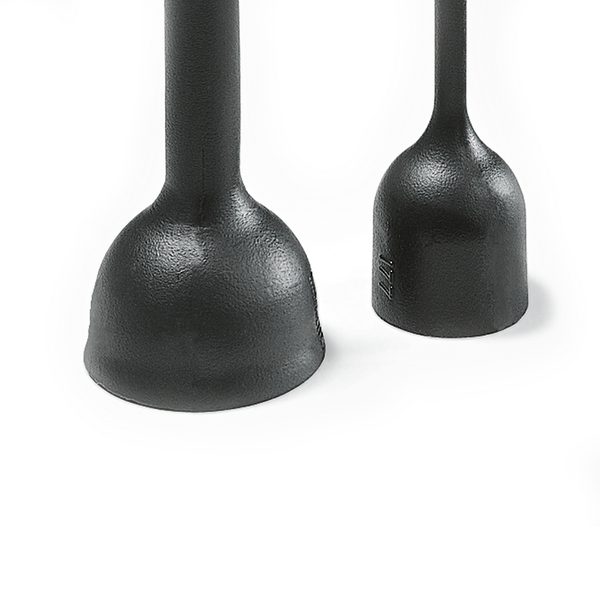

Bottle Shapes, VG style
Art.-Nr. 401-76008 | 176-1-J-PO-X-BK |  Details

177-1-G supplied / fully recovered.

    • Cable strain relief for partially loaded connectors
    • Small cable diameters
    • Use with our W24 adhesive for excellent chemical resistance
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Application Heat Shrinkable moulded shapes for use in Electrical and Electronic Cable Harness Applications.
    Colour Black (BK)
    Material Polyolefin, cross-linked (PO-X)
    PART DESCRIPTION 176-1-J-PO-X-BK
    Pack Cont. 1pc.
    Package Content packed in bag
    Product Family Helashrink 170 Series, with rib
    Product Group Bottle Shapes, VG style
    Type 176-1-J
    Variant For plug
    Flexibility Flexible
    HW ± 20 % 1.5mm
    JW nom. 1.1mm
    JW ± 30 % 1.1mm
    P ± 10 % 60mm
    R nom. 12mm
    R ± 10 % 11.7mm
    S nom. 38mm
    T ± 20 % 1mm
    V max. 3.3mm
    Weight/Unit 0.004kg
    ∅H max. b 13mm
    ∅H min. a 19mm
    ∅J max. b 2mm
    ∅J min. a 6mm
    Dielectric Strength 15kV/mm
    Dielectric Strength test method ASTM D2671
    Flammability ASTM D635
    Min. Shrink Temperature - °C +135 °C
    Nato number 1005-01-118-8602
    Operating Temperature -50 °C to +135 °C
    ROHS compliant Yes
    Shelf Life 5 years
    Specifications
    Tensile Strength 19MPa
    UV-Stabilised No
    Country of Origin GB
    GTIN-13 / EAN 5022660439407
    Packaging 1 - Height (m) 0.025m
    Packaging 1 - Length (m) 0.120m
    Packaging 1 - Qty 1
    Packaging 1 - Type bag
    Packaging 1 - Volume (m³) 0.0003m³
    Packaging 1 - Weight (kg) 0.004001kg
    Packaging 1 - Width (m) 0.100m
    ETIM 7.0 Key EC002464
    ETIM 8.0 Key EC002464
    ETIM 9.0 Key EC002464
    UNSPSC Key 39121721
