Angle Shapes
Art.-Nr. 418-07004 | 1807-4-J-PO-X-BK |  Details

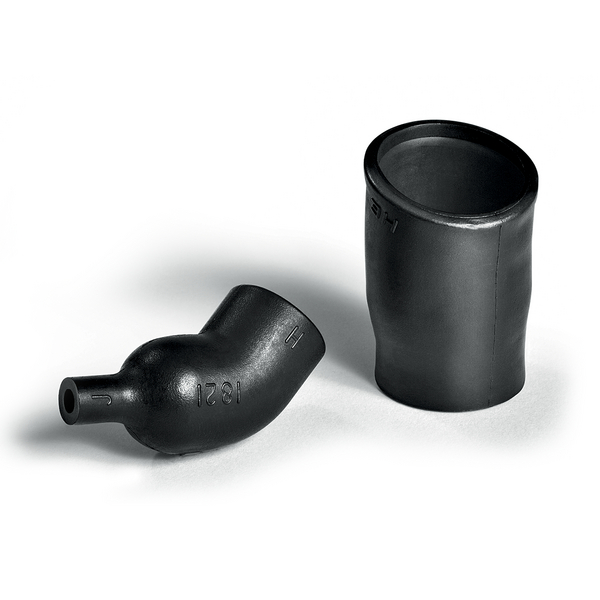

1821-42 supplied / fully recovered.

    • Provides strain relief and mechanical protection for harness systems
    • Use in conjunction with a circular grooved adaptor
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Application Heat Shrinkable moulded shapes for use in Electrical and Electronic Cable Harness Applications.
    Colour Black (BK)
    Material Polyolefin, cross-linked (PO-X)
    PART DESCRIPTION 1807-4-J-PO-X-BK
    Pack Cont. 1pc.
    Package Content packed in bag
    Product Family Helashrink 1800 Series, with rib, 30°, 45°, 60° angle
    Product Group Angle Shapes
    Type 1807-4-J
    Angle 45
    Flexibility Flexible
    HW ± 20 % 1.8mm
    JO ± 10 % 15.2mm
    JW ± 20 % 1.8mm
    P ± 10 % 43.2mm
    R nom. 10.2mm
    R ± 10 % 10.2mm
    S nom. 3.0mm
    S ± 10 % 3mm
    T ± 10 % 1mm
    T ± 20 % 1.0mm
    ∅H max. b 18mm
    ∅H min. a 35.6mm
    ∅J max. b 7.4mm
    ∅J min. a 35.6mm
    Flammability ASTM D635
    Min. Shrink Temperature - °C +135 °C
    Operating Temperature -55 °C to +135 °C
    ROHS compliant Yes
    Specifications
    Tensile Strength 19MPa
    UV-Stabilised No
    Country of Origin GB
    GTIN-13 / EAN 5022660441493
    ETIM 7.0 Key EC002464
    ETIM 8.0 Key EC002464
    ETIM 9.0 Key EC002464
    UNSPSC Key 39121721
