22/04/2025

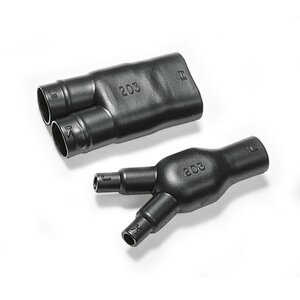

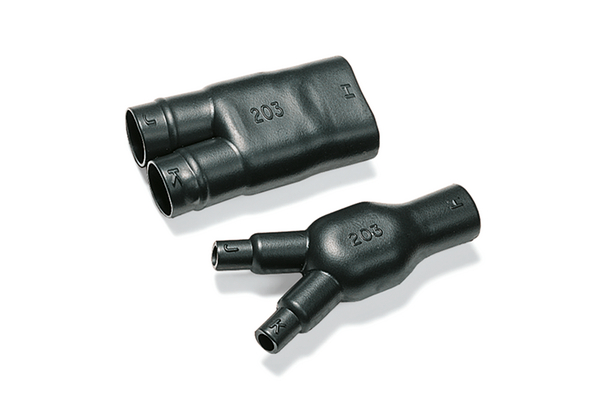

2-Way Outlet Shapes, VG style
Art.-Nr. 402-04022 | 204-1-GW24-PO-X-BK |

Copied
203-1 supplied / fully recovered.

    • Mechanical tension relief in cable harnesses
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Application Heat Shrinkable moulded shapes for use in Electrical and Electronic Cable Harness Applications.
    Colour Black (BK)
    Material Polyolefin, cross-linked (PO-X)
    PART DESCRIPTION 204-1-GW24-PO-X-BK
    Pack Cont. 1pc.
    Package Content packed in bag
    Product Family Helashrink 200 Series
    Product Group 2-Way Outlet Shapes, VG style
    Type 204-1-GW24
    Variant For 2-core cables

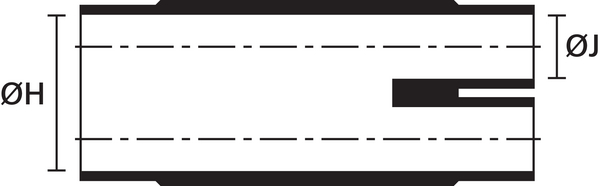

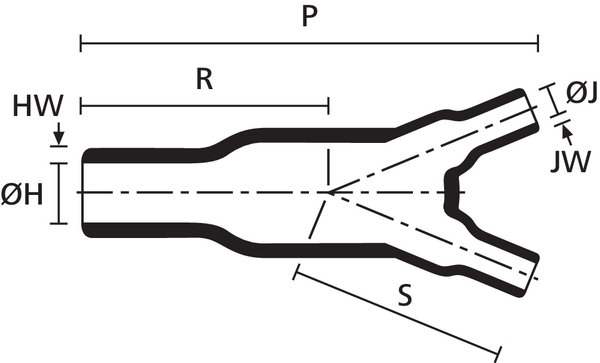

    ⌀H max. b 18mm
    ⌀H min. a 39mm
    ⌀J max. b 12mm
    ⌀J min. a 27mm
    ⌀J/K max. b 12mm
    ⌀J/K min. a 27mm
    ⌀K max. b 12mm
    ⌀K min. a 27mm
    Flexibility semi rigid
    HW ± 20 % 3.0mm
    HW ± 30 % 3mm
    JW nom. 2mm
    JW/KW ± 30% 2.5mm
    P ± 10 % 131mm
    P ±10%=overall length 131.0mm
    R nom. 66mm
    R ± 10 % 66mm
    S nom. 81mm
    Weight/Unit 0.045kg
    Adhesive W24
    Dielectric Strength 15kV/mm
    Dielectric Strength test method ASTM D2671
    ELV compliant (Article 4 - 2) YES
    Flammability ASTM D635
    Hazardous Goods No
    Min. Shrink Temperature - °C +135 °C
    Operating Temperature -75 °C to +150 °C
    ROHS compliant Yes
    Specifications
    Country of Origin GB
    Customs Number 39174000
    GTIN-13 / EAN 5022660444029
    Packaging 1 - Height (m) 0.04m
    Packaging 1 - Length (m) 0.14m
    Packaging 1 - Qty 1
    Packaging 1 - Type bag
    Packaging 1 - Volume (m³) 0.001176m³
    Packaging 1 - Weight (kg) 0.045kg
    Packaging 1 - Width (m) 0.21m
    ETIM 7.0 Key EC002464
    ETIM 8.0 Key EC002464
    ETIM 9.0 Key EC002464
    UNSPSC Key 39121721
