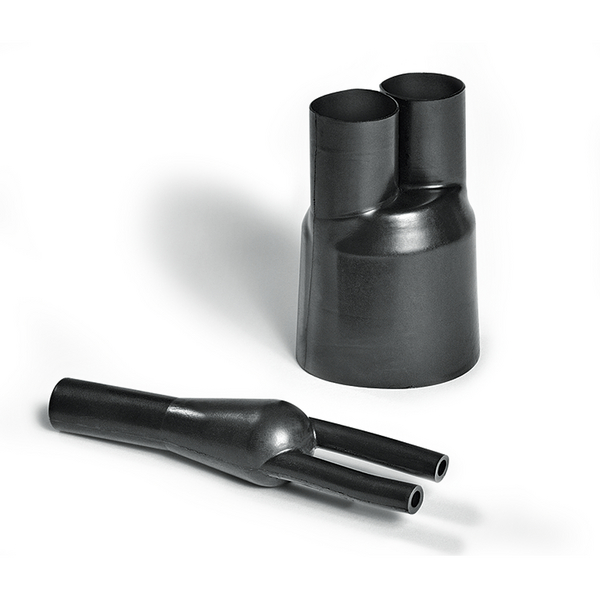

2-Way Outlet Shapes, Breakout Boots
Art.-Nr. 402-19041 | 219-2-G-PO-X-BK |  Details

223-2 supplied / fully recovered.

    • Easy, time-saving insulation of cable branch point where it splits into single wires
    • Adhesive is applied to relieve mechanical tension in cable harnesses
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Application Cable breakouts are manufactured from a tough cross-linked flame retarded polyolefin. This allows the breakouts to be used for both interior and exterior applications. They offer excellent electrical and mechanical protection. Cable breakouts are supplied with an adhesive inner coating for reliable environmental sealing, and are available for 2, 3, 4, 5 and 6 core cables.
    Colour Black (BK)
    Material Polyolefin, cross-linked (PO-X)
    PART DESCRIPTION 219-2-G-PO-X-BK
    Pack Cont. 1pc.
    Package Content packed in box
    Product Family Helashrink 200 Series, in line, low voltage
    Product Group 2-Way Outlet Shapes, Breakout Boots
    Shrink Ratio up to 3:1
    Type 219-2-G
    Variant For 2-core cables
    Bundle Diameter max (metric) 400.0mm
    Bundle ∅ min. 185mm
    Flexibility semi rigid
    HW ± 20 % 3.8mm
    JW ± 20 % 3.8mm
    P ± 10 % 141.5mm
    R ± 10 % 42.5mm
    S nom. 44mm
    ∅H max. b 38.1mm
    ∅H min. a 77mm
    ∅J max. b 12.7mm
    ∅J min. a 37mm
    ∅K max. b 12.7mm
    ∅K min. a 37mm
    Dielectric Strength 15kV/mm
    Flammability ASTM D635
    Min. Shrink Temperature - °C +135 °C
    Operating Temperature -55 °C to +70 °C
    ROHS compliant Yes
    Specifications
    UV-Stabilised No
    Country of Origin GB
    GTIN-13 / EAN 5022660674846
    ETIM 7.0 Key EC002464
    ETIM 8.0 Key EC002464
    ETIM 9.0 Key EC002464
    UNSPSC Key 39121721
