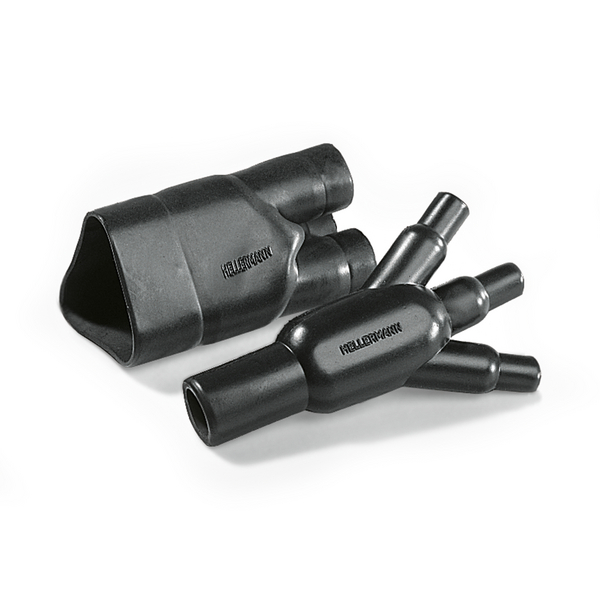

3-Way Outlet Shapes, VG style
Art.-Nr. 403-04020 | 304-50-L-FPMX-BK |  Details

304-1-G supplied / fully recovered.

    • Cable strain relief and mechanical protection at harness transition points
    • All outlets clearly marked to aid orientation during installation
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Application Heat Shrinkable moulded shapes for use in Electrical and Electronic Cable Harness Applications.
    Colour Black (BK)
    Material Fluoroelastomer, cross-linked (FPMX)
    PART DESCRIPTION 304-50-L-FPMX-BK
    Pack Cont. 1pc.
    Package Content packed in bag
    Product Family Helashrink 300 Series
    Product Group 3-Way Outlet Shapes, VG style
    Type 304-50-L
    Variant For 3-core cables
    Flexibility Flexible
    HW ± 30 % 2.5mm
    JW ± 30 % 1.5mm
    P ± 10 % 93mm
    R ± 10 % 43mm
    S ± 10 % 50mm
    ∅H max. b 13.5mm
    ∅H min. a 27mm
    ∅J max. b 7mm
    ∅J min. a 12.5mm
    Flammability ASTM D635
    Min. Shrink Temperature - °C +135 °C
    Nato number 5970-01-449-4365
    Operating Temperature -55 °C to +200 °C
    ROHS compliant Yes
    Specifications
    Tensile Strength 13MPa
    UV-Stabilised No
    Country of Origin GB
    GTIN-13 / EAN 5022660452062
    ETIM 7.0 Key EC002464
    ETIM 8.0 Key EC002464
    ETIM 9.0 Key EC002464
    UNSPSC Key 39121721
