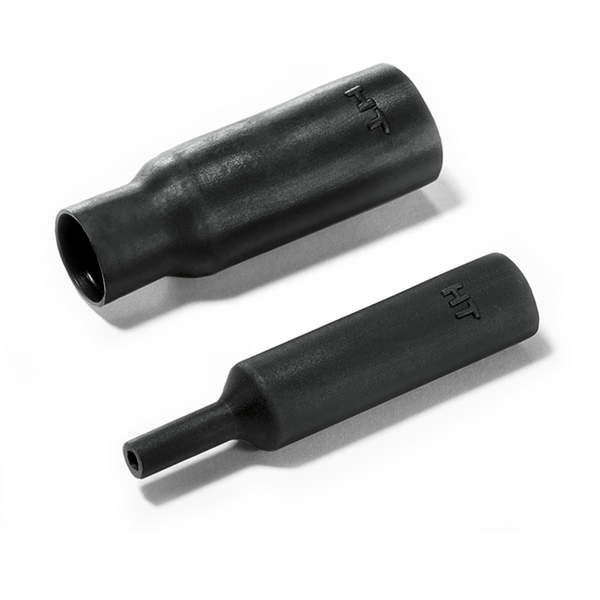

Low Profile Shim Boots
Art.-Nr. 422-10212 | 313E455-8-PEEX-BK |  Details

313E445-457 Series supplied / fully recovered.

    • Used to build up or shim a cable diameter
    • Facilitates better fit for components in cable harness
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Application Heat Shrinkable Moulded Shapes for use in Electical and Electronic Cable Harness Applications
    Application Tool H6100, E4500, CHG900
    Colour Black (BK)
    Material Polyester elastomer cross-linked (PEEX)
    PART DESCRIPTION 313E455-8-PEEX-BK
    Pack Cont. 5pcs.
    Package Content packed in bag
    Product Family Helashrink 313E Series, without adapter lip
    Product Group Low Profile Shim Boots
    Shrink Ratio 3:1
    Type 313E455-8
    Variant For 3-core cables
    Flexibility Flexible
    HO ± 10 % 41.1mm
    HW ± 25 % 1.5mm
    JW ± 25 % 1.5mm
    P ± 10 % 63.5mm
    R ± 10 % 27.9mm
    S ± 10 % 15.7mm
    Weight/Unit 0.006kg
    ∅H max. b 12.7mm
    ∅H min. a 2.8mm
    ∅J max. b 9.9mm
    ∅J min. a 2.6mm
    Flammability ASTM D635
    Min. Shrink Temperature - °C +100 °C
    Operating Temperature -55 °C to +120 °C
    ROHS compliant Yes
    Specifications
    Tensile Strength 12MPa
    UV-Stabilised No
    Country of Origin GB
    GTIN-13 / EAN 5022660691423
    ETIM 7.0 Key EC002464
    ETIM 8.0 Key EC002464
    ETIM 9.0 Key EC002464
    UNSPSC Key 39121721
