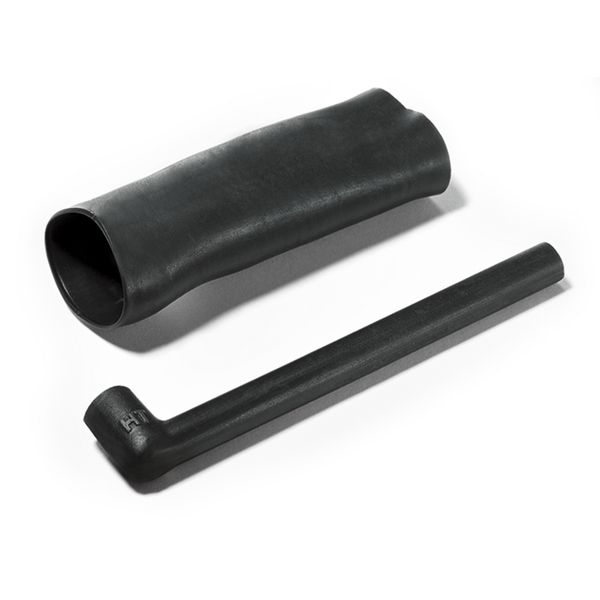

Low Profile Right Angle Boots
Art.-Nr. 422-30109 | 333F343-6-PO-X-BK Details

  • Lightweight strain relief for small cable diameters requiring high shrink ratio
  • Right angle connector housing with long cable entry and inner lip

Request your individual offer now

Application Heat Shrinkable Moulded Shapes for use in Electical and Electronic Cable Harness Applications
Colour Black (BK)
Material Polyolefin, cross-linked (PO-X)
PART DESCRIPTION 333F343-6-PO-X-BK
Pack Cont. 5pcs.
Package Content packed in bag
Product Family Helashrink 333F Series, with adapter lip, 90° angle
Product Group Low Profile Right Angle Boots
Shrink Ratio 3:1
Type 333F343-6
Variant For plug
Angle 90
Flexibility Flexible
HW ± 1.5 1.7mm
JW ± 0.8 1.5mm
P ± 10 % 146.3mm
R ± 15 % 2.8mm
S ± 1.5 1.7mm
T ± 0.8 1.3mm
Weight/Unit .012kg
∅H max. b 18.5mm
∅H min. a 30.9mm
∅J max. b 8.9mm
∅J min. a 24.3mm
Flammability ASTM D635
Min. Shrink Temperature - °C +100 °C
Operating Temperature -55 °C to +120 °C
ROHS compliant Yes
Specifications
UV-Stabilised No
Country of Origin GB
GTIN-13 / EAN 5022660684258
ETIM 7.0 Key EC002464
ETIM 8.0 Key EC002464
ETIM 9.0 Key EC002464
UNSPSC Key 39121721
