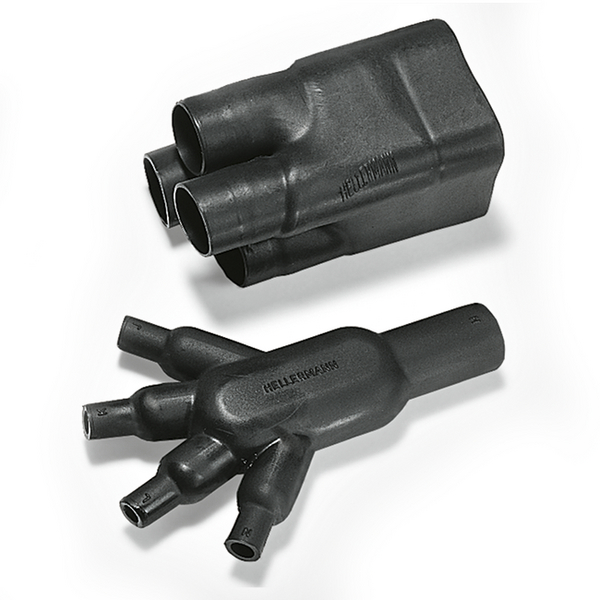

4-Way Outlet Shapes, VG style
Art.-Nr. 404-03001 | 403-1-B7-PO-X-BK |  Details

403-1 supplied / fully recovered.

    • 4-way outlet shape
    • Cable sealing, strain relief and mechanical protection
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Application Heat Shrinkable moulded shapes for use in Electrical and Electronic Cable Harness Applications.
    Colour Black (BK)
    Material Polyolefin, cross-linked (PO-X)
    PART DESCRIPTION 403-1-B7-PO-X-BK
    Pack Cont. 1pc.
    Package Content packed in bag
    Product Family Helashrink 400 Series
    Product Group 4-Way Outlet Shapes, VG style
    Shrink Ratio up to 3:1
    Type 403-1-B7
    Variant For 4-core cables
    Flexibility semi rigid
    JW ± 30 % 1.5mm
    P ± 10 % 102mm
    P ±10%=overall length 102mm
    R nom. 49mm
    R ± 10 % 52mm
    S nom. 45mm
    S ± 10 % 45mm
    T ± 10 % 49mm
    ∅H max. b 13mm
    ∅H min. a 27mm
    ∅J max. b 7mm
    ∅J min. a 13mm
    ∅J/K/L/N max. b 7mm
    ∅J/K/L/N min. a 13mm
    ∅K max. b 7mm
    ∅K min. a 13mm
    Dielectric Strength 15kV/mm
    Dielectric Strength test method ASTM D2671
    Flammability ASTM D635
    Min. Shrink Temperature - °C +135 °C
    Nato number 5970-99-117-0962
    Operating Temperature -50 °C to +80 °C
    ROHS compliant Yes
    Specifications
    UV-Stabilised No
    Country of Origin GB
    GTIN-13 / EAN 5022660461217
    ETIM 7.0 Key EC002464
    ETIM 8.0 Key EC002464
    ETIM 9.0 Key EC002464
    UNSPSC Key 39121721
    Show all
    Heat shrink tubing Heat shrink tubing

    Heat shrink tubing

    You are looking for the heat shrink tubing meeting your application requirements best? The key factors to which we owe our success are the unique and quite specific properties of our heat shrink tubing.
