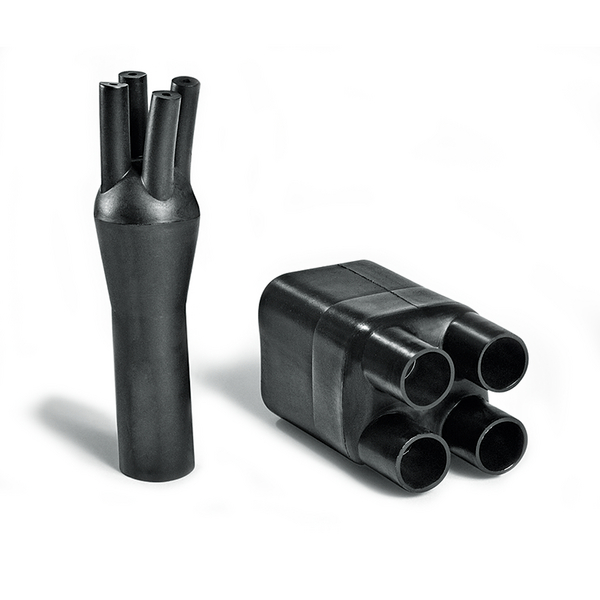

4-Way Outlet Shapes, Breakout Boots
Art.-Nr. 404-43015 | 443-1-H-PO-X-BK |  Details

400 series supplied / fully recovered.

    • Easy, time-saving insulation of cable branch point where it splits into single wires
    • Made of tough, cross-linked, Polyolefin
    • Adhesive is applied to relieve mechanical tension in cable harnesses
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Application Cable breakouts are manufactured from a tough cross-linked flame retarded polyolefin. This allows the breakouts to be used for both interior and exterior applications. The adhesive liner offers excellent electrical and mechanical protection and are available for 2, 3, 4, 5 and 6 core cables.
    Colour Black (BK)
    Material Polyolefin, cross-linked (PO-X)
    PART DESCRIPTION 443-1-H-PO-X-BK
    Pack Cont. 1pc.
    Package Content packed in bag
    Product Family Helashrink 400 Series, in line, low voltage
    Product Group 4-Way Outlet Shapes, Breakout Boots
    Shrink Ratio up to 3:1
    Type 443-1-H
    Variant For 4-core cables
    Flexibility Flexible
    HW ± 20 % 3mm
    JW ± 20 % 2.5mm
    P ± 10 % 132mm
    R ± 10 % 26mm
    S nom. 22mm
    S ± 10 % 22mm
    ∅H max. b 12mm
    ∅H min. a 35mm
    ∅J max. b 3mm
    ∅J min. a 15mm
    Dielectric Strength 15kV/mm
    Dielectric Strength test method ASTM D2671
    Flammability ASTM D635
    Halogen-free Yes
    Min. Shrink Temperature - °C +135 °C
    Operating Temperature -55 °C to +105 °C
    ROHS compliant Yes
    Specifications
    Tensile Strength 10MPa
    UV-Stabilised No
    Country of Origin GB
    GTIN-13 / EAN 5022660463945
    ETIM 7.0 Key EC002464
    ETIM 8.0 Key EC002464
    ETIM 9.0 Key EC002464
    UNSPSC Key 39121721
