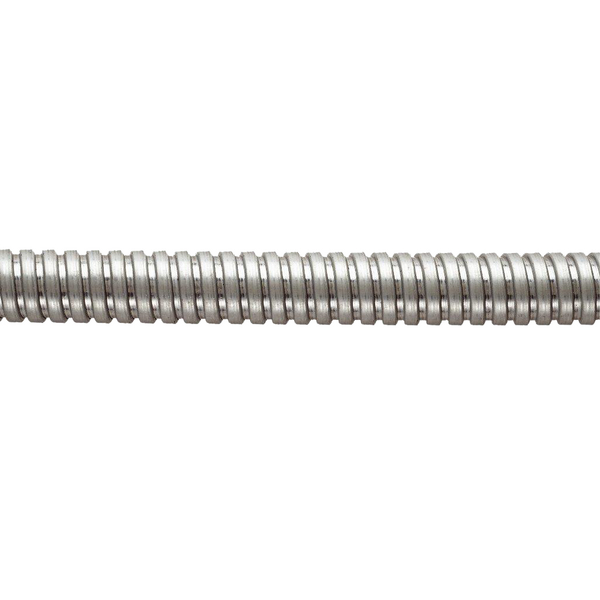

FU40-10M-GS-ML
Art.-Nr. 166-90757 | FU40-10M-GS-ML |  Details

    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Colour Metal (ML)
    Material Galvanised Steel (GS)
    PART DESCRIPTION FU40-10M-GS-ML
    Pack Cont. 10.0m
    Package Content packed in reel
    Type FU40-10M
    Bending Radius min. (BR) 3.54"
    Bending Radius min. (R) 80mm
    Diameter (D) 37.3mm
    Nominal ∅ 1.25"
    Nominal ∅ 40.0mm
    Outside Ø (OD) 42.5mm
    Outside ∅ (OD) 1.67"
    Weight 885g/m
    ∅ D 1.47"
    CSA Certified No
    Flammability EN IEC 61386-1
    Halogen-free Yes
    Operating Temperature -100 °C to +300 °C
    ROHS compliant Yes
    Self extinguishing Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UL Recognized (US and Canada) No
    UV-Stabilised No
    Country of Origin GB
    GTIN-13 / EAN 4031026570235
    Packaging 1 - Weight (kg) 8.85kg
    Reel Length 32.8ft
    Reel Length 10.0m
    UNSPSC Key 39131706
    Metal conduits Metal conduits

    Metal conduits

    Metal conduits from HellermannTyton: Standard metal conduits, coated metal conduits, liquid tight metal conduits and matching metal conduit fittings. Discover now!
