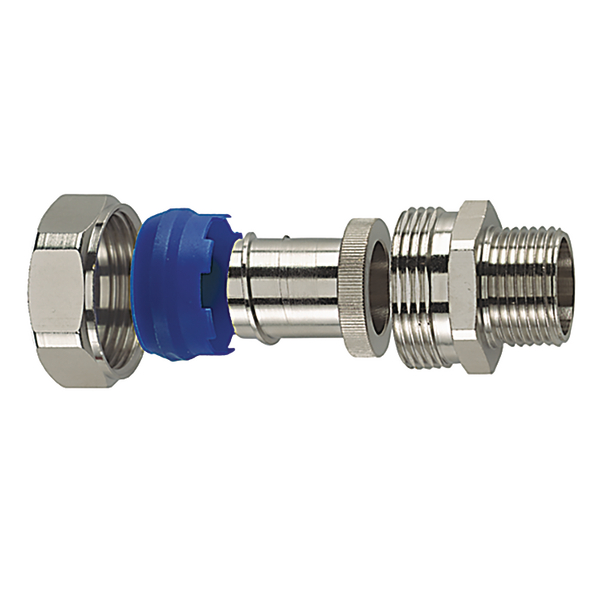

LPC050-S-050-NPB-ML
Art.-Nr. 166-90362 | LPC050-S-050-NPB-ML |  Details

    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Colour Metal (ML)
    Material Nickel Plated Brass (NPB)
    PART DESCRIPTION LPC050-S-050-NPB-ML
    Pack Cont. 10pcs.
    Package Content packed in pack
    Thread type NPT
    Type LPC050-S-050
    Variant Straight
    Bore Diameter (Imperial) 0.57"
    Bore Diameter (metric) 14.5
    Height (H) 29.0mm
    Length (L) 33.5mm
    Length (L2) 21.5mm
    Nominal ∅ 0.5"
    Nominal ∅ 20mm
    Thread Length (TL) 12.0mm
    Thread Length (TL) (Imperial) 0.47"
    Thread Size (Imperial) 1/2 "
    CSA Certified No
    Halogen-free Yes
    IP-Rating IP68
    Operating Temperature -50 °C to +135 °C
    ROHS compliant Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UL Recognized (US and Canada) No
    Country of Origin GB
    GTIN-13 / EAN 4031026515984
    UNSPSC Key 39131706
    Metal conduits Metal conduits

    Metal conduits

    Metal conduits from HellermannTyton: Standard metal conduits, coated metal conduits, liquid tight metal conduits and matching metal conduit fittings. Discover now!
