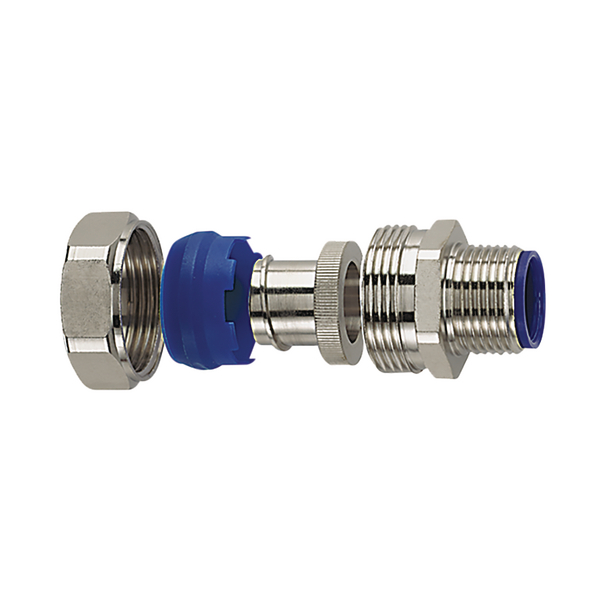

LTS125-FMC-125-NPB/PA6-ML
Art.-Nr. 166-90402 | LTS125-FMC-125-NPB/PA6-ML |  Details

    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Colour Metal (ML)
    Material Nickel Plated Brass (NPB), Polyamide 6 (PA6)
    PART DESCRIPTION LTS125-FMC-125-NPB/PA6-ML
    Pack Cont. 1pcs.
    Package Content packed in pack
    Thread type NPT
    Type LTS125-FMC-125
    Variant Straight
    Bore Diameter (Imperial) 1.29"
    Bore Diameter (metric) 32.7
    Height (H) 52.0mm
    Length (L) 47.5mm
    Nominal ∅ 1.25"
    Nominal ∅ 40.0mm
    Thread Length (TL) 16mm
    Thread Length (TL) (Imperial) 0.63"
    Thread Size (Imperial) 1-1/4 "
    Wrenching Flat Size (Imperial) 1.24"
    Wrenching Flat Size (Metric) 31.5mm
    CSA Certified No
    Halogen-free Yes
    IP-Rating IP68
    Operating Temperature -50 °C to +135 °C
    ROHS compliant Yes
    Specifications
    UL Listed (US and Canada) Yes
    UL Listed (US and Canada) Yes
    UL Recognized (US and Canada) No
    UL Recognized (US and Canada) No
    UL-File Number E247502
    UV-Stabilised No
    Country of Origin GB
    GTIN-13 / EAN 4031026520759
    UNSPSC Key 39131707
    Metal conduits Metal conduits

    Metal conduits

    Metal conduits from HellermannTyton: Standard metal conduits, coated metal conduits, liquid tight metal conduits and matching metal conduit fittings. Discover now!

    Metal conduits >
