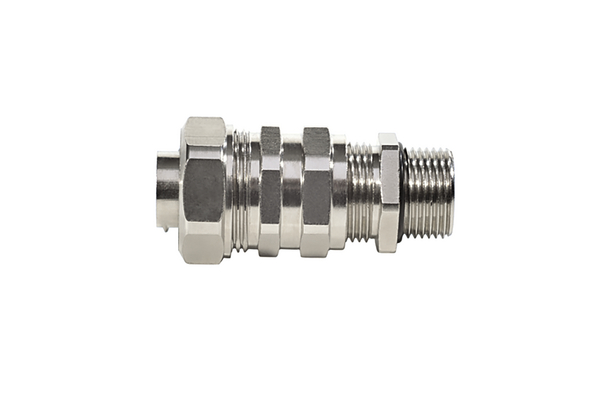

Straight Cable Gland Fitting IP68 ø32mm M32
Art.-Nr. 166-36204 | LTS32-SCG-M32-PA66/NPB/TPE-ML |  Details

LTS-SCG Compression Fitting with Strain Relief and Cable Seal.

    • Multipart compression fitting including elastomeric seal
    • Powerful strain relief function
    • Seals cable at IP68 and IP69k
    • Provides excellent tensile strength
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads CAD-Download
    Application External thread, nickle plated brass. Fulfils IP66, IP67, IP68 and IP69k.
    Cable ∅ max 21mm
    Cable ∅ min 11mm
    Colour Metal (ML)
    Material Polyamide 6.6 (PA66), Nickel Plated Brass (NPB), Thermoplastic Elastomer (TPE)
    Metallic Fitting Type Cable gland
    PART DESCRIPTION LTS32-SCG-M32-PA66/NPB/TPE-ML
    Pack Cont. 2pcs.
    Package Content packed in bag
    Product Family LTS-SCG Straight cable gland fitting, IP68
    Product Group Fittings for metallic conduits with liquid-tight cover
    Short Description Straight Cable Gland Fitting IP68 ø32mm M32
    Thread type metric
    Type LTS32-SCG-M32
    Variant Straight

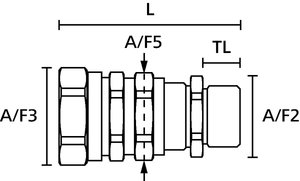

    A/F Gland Body (A/F5) 40mm
    A/F Nut (A/F3) 42mm
    A/F Thread (A/F2) 36mm
    Length (L) 78mm
    Min. Bore Size (B) 21.0mm
    Nominal ∅ 1.25"
    Nominal ∅ 32mm
    Thread Length (TL) 15.0mm
    Thread Size M32
    Weight/Unit 1.8kg
    CAS Number 7439-92-1
    Critical Substance Lead in Copper alloy 4%
    EC Number 231-100-4
    ELV compliant (Article 4 - 2) YES
    Halogen-free Yes
    Hazardous Goods No
    IP-Rating IP66, IP67, IP68, IP69k
    Operating Temperature -50 °C to +135 °C
    ROHS compliant Yes
    Specifications
    Country of Origin GB
    Customs Number 74122000
    GTIN-13 / EAN 4031026408521
    Packaging 1 - Height (m) 0.05m
    Packaging 1 - Length (m) 0.2m
    Packaging 1 - Qty 2
    Packaging 1 - Type bag
    Packaging 1 - Volume (m³) 0.0016m³
    Packaging 1 - Weight (kg) 3.600001kg
    Packaging 1 - Width (m) 0.16m
    ETIM 7.0 Key EC001180
    ETIM 8.0 Key EC001180
    ETIM 9.0 Key EC001180
