Divisible seals for in-duct use, SRV and SRV-G.
Art.-Nr. 874-00122 | EZA-t_40/3x16-BK |  Details

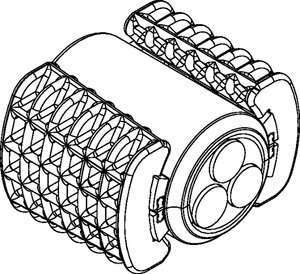

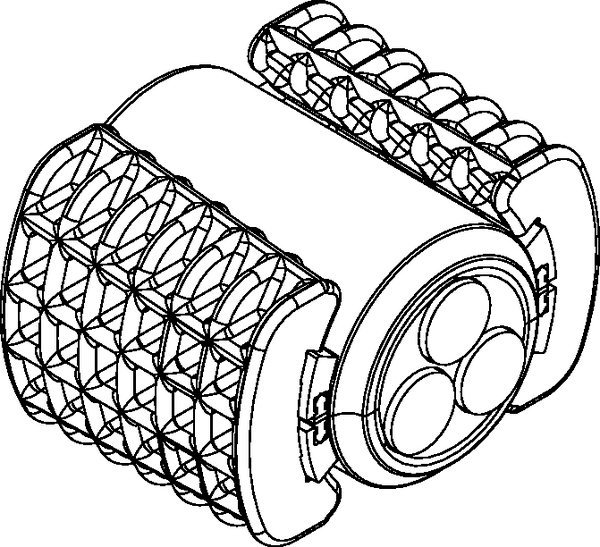

Divisible seals EZA-t seal ducts and speedpipe bundles.

    • divisible
    • reusable
    • gas- and water-tight up to 0.5 bar
    Add to watchlist

    Request your individual offer now

     Request quote
    Application Sealing speedpipe bundles under ground with divisible seals, adjusted to all occupancy variants of PE-HD ducts: due to the variable gaskets bundles as well as protective ducts - either empty or occupied with speedpipe / cables - remain clean, dry and operational over decades. The divisible elements fix speedpipe subduct solutions against temperature-affected length modifications.
    Application Method 0 - 3 speedpipe Ø 16
    Colour Black (BK)
    PART DESCRIPTION EZA-t_40/3x16-BK
    Pack Cont. 12pcs.
    Package Content packed in carton
    Product Family EZA-t 40/3x16
    Product Group Divisible seals for in-duct use, SRV and SRV-G.
    Type EZA-t_40/3x16
    Diameter (D) 40mm
    Country of Origin DE
    GTIN-13 / EAN 4031051423285
    Packaging 1 - Qty 12
    Packaging 1 - Type carton
    Packaging 2 - Qty 864
    Packaging 2 - Type pallet
    ETIM 7.0 Key EC000000
    ETIM 8.0 Key EC000000
    ETIM 9.0 Key EC000000
