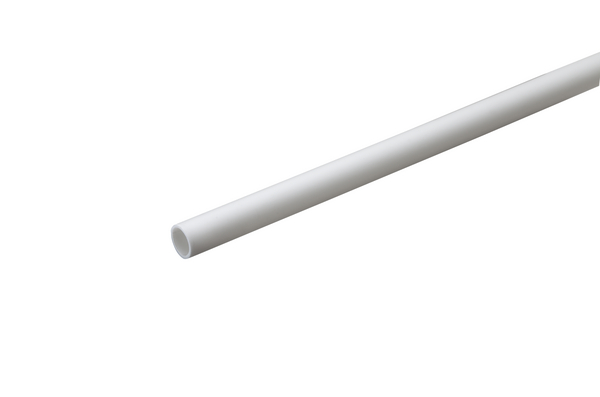

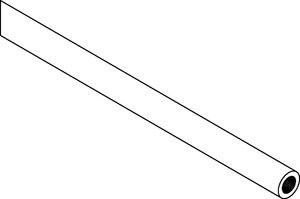

speedpipe indoor.
Art.-Nr. 873-00002
| speedpipe-indoor_10x2.0-PE-HD-WH
|
Details
- fire tests according to the legal safety objectives
- installation and laying instructions available
- can be used in combination with firewalls
- inner side furnished with optimised slide ribs, therefore optimally applicable for blowing and pulling in micro cables
- not flame spreading and halogen free according to EN 60684-2 and low smoke density according to EN 61034-2
- speedpipe indoor are delivered on a wooden or plastic spool (box) which is optimised for shipment and installation
More products in this product group:
| Application | The speedpipe indoor were developed by gabocom especially for the application inside buildings. They are not flame spreading and were tested in accordance with the standards DIN EN 13501-1, DIN EN 60332-1-2 and regarding the absence of halogens according to DIN EN 60684-2. Furthermore, the speedpipe indoor were tested in accordance with DIN EN 61386-22 (VDE 0605) for a clear definition of their laying. |
| Colour | White (WH) |
| Material | Polyethylene, high density (PE-HD) |
| PART DESCRIPTION | speedpipe-indoor_10x2.0-PE-HD-WH |
| Pack Cont. | 2500m |
| Package Content packed in | drum |
| Product Family | speedpipe indoor 10x2,0 |
| Product Group | speedpipe indoor. |
| Type | speedpipe-indoor_10x2.0 |
| Country of Origin | DE |
| GTIN-13 / EAN | 4031051035259 |
| Packaging 1 - Height (m) | 1.2m |
| Packaging 1 - Length (m) | 1.2m |
| Packaging 1 - Qty | 2500 |
| Packaging 1 - Type | drum |
| Packaging 1 - Volume (m³) | 0.5328m³ |
| Packaging 1 - Weight (kg) | 158kg |
| Packaging 1 - Width (m) | 0.37m |
| Packaging 2 - Height (m) | 1.26m |
| Packaging 2 - Length (m) | 1.2m |
| Packaging 2 - Qty | 7500 |
| Packaging 2 - Type | pallet |
| Packaging 2 - Volume (m³) | 1.8144m³ |
| Packaging 2 - Weight (kg) | 490kg |
| Packaging 2 - Width (m) | 1.2m |
