speedpipe bundles ground tight covered.
Art.-Nr. 872-00158 | SRV-G_12x10_tc-PE-HD-OG/WH Details

Request your individual offer now

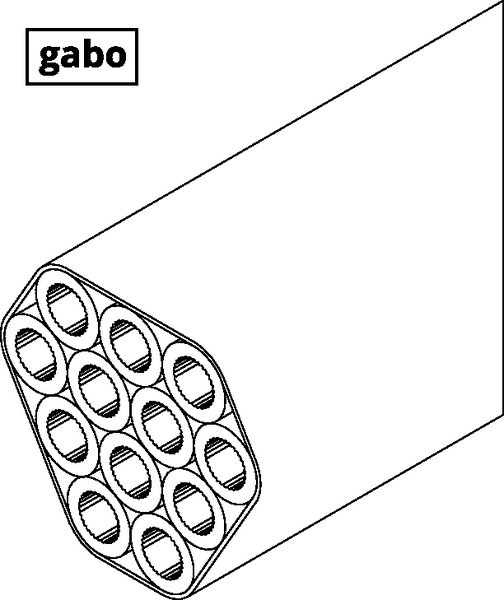

Application speedpipe bundles ground SRV-G tc bundle various colored, thick-walled speedpipe ground by means of a tight outer sheath. Due to the variety of single duct dimensions of the speedpipe ground and their combination within the bundle, you consider spare capacities for the future. Our system concept is reflected in the protective function and the ease of assembly of the tight outer sheath: it is rugged against the impacts of the surrounding soil, but nevertheless can be opened quickly, easily and safely for branching-off from the bundle.
Colour Orange (OG), White (WH)

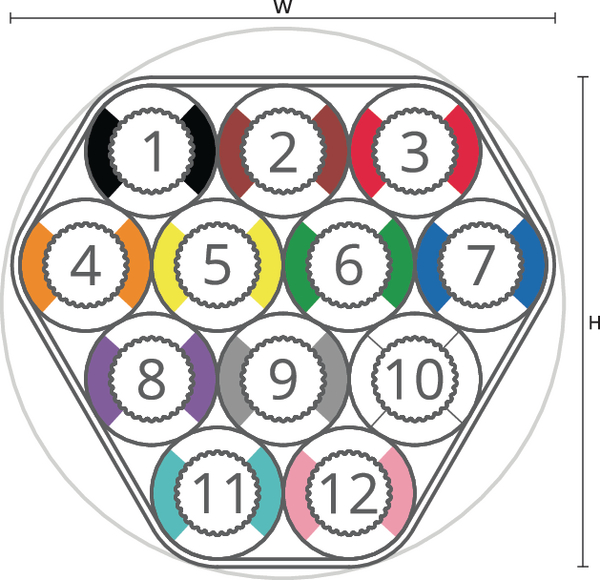

Description 12 speedpipe ground 10x2.0
Material Polyethylene, high density (PE-HD)
PART DESCRIPTION SRV-G_12x10_tc-PE-HD-OG/WH
Pack Cont. 1800m
Package Content packed in drum
Product Family SRV-G 12x10 tc
Product Group speedpipe bundles ground tight covered.
Type SRV-G_12x10_tc
Variant gabo
Expansion level Fibre to the Building (FTTB), Fibre to the Home (FTTH)
Length (L) 1800m
Wall (WT) 0.6mm
Weight/Unit 0.667kg
Country of Origin DE
GTIN-13 / EAN 4031051018092
Packaging 1 - Height (m) 2.4m
Packaging 1 - Length (m) 2.4m
Packaging 1 - Qty 1800
Packaging 1 - Type drum
Packaging 1 - Volume (m³) 6.912
Packaging 1 - Weight (kg) 1550.6kg
Packaging 1 - Width (m) 1.2m
ETIM 7.0 Key EC000000
ETIM 8.0 Key EC000000
ETIM 9.0 Key EC000000
