thick-walled speedpipe ground single ducts in connection: SRV-G
Art.-Nr. 872-00012
| SRV-G_40/8x7-PE-HD-OG
|
Details
Request your individual offer now
Request quote
More products in this product group:

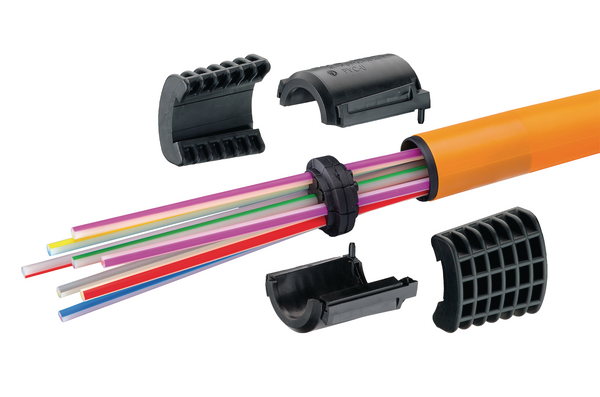

Application | The speedpipe bundles ground SRV-G consist of varicoloured speedpipe ground which are bundled by a flexible jacket pipe. The speedpipe bundle ground can be pulled into existing PE-HD ducts for ensuring maximum occupation. |
Colour | Orange (OG) |

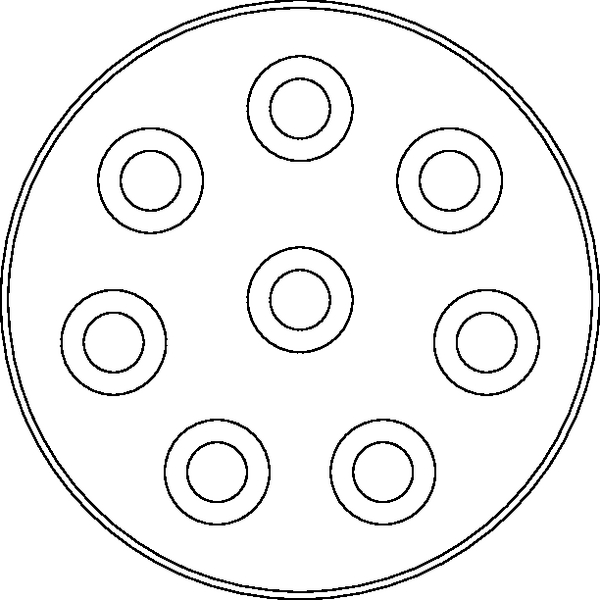

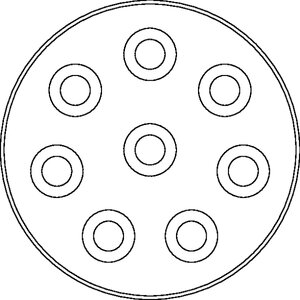

Description | 8 speedpipe ground 7x1.5 |
Material | Polyethylene, high density (PE-HD) |
PART DESCRIPTION | SRV-G_40/8x7-PE-HD-OG |
Pack Cont. | 400m |
Package Content packed in | drum |
Product Family | SRV-G 40/8x7 |
Product Group | thick-walled speedpipe ground single ducts in connection: SRV-G |
Type | SRV-G_40/8x7 |
Variant | gabo |
Country of Origin | DE |
GTIN-13 / EAN | 4031051015725 |
Packaging 1 - Height (m) | 1.2m |
Packaging 1 - Length (m) | 1.2m |
Packaging 1 - Qty | 400 |
Packaging 1 - Type | drum |
Packaging 1 - Volume (m³) | 0.52704m³ |
Packaging 1 - Weight (kg) | 133kg |
Packaging 1 - Width (m) | 0.366m |
Packaging 2 - Height (m) | 1.248m |
Packaging 2 - Length (m) | 1.2m |
Packaging 2 - Qty | 1200 |
Packaging 2 - Type | pallet |
Packaging 2 - Volume (m³) | 1.7971m³ |
Packaging 2 - Weight (kg) | 133kg |
Packaging 2 - Width (m) | 1.2m |
