speedpipe bundles ground tight covered.
Art.-Nr. 872-00143 | SRV-G_7x10_tc-PE-HD-OG |  Details

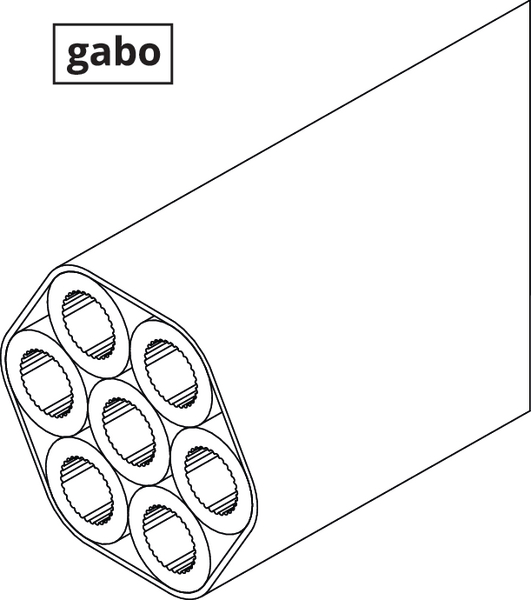

speedpipe bundles ground SRV-G tc with EZA-t for sealing.

    Add to watchlist

    Request your individual offer now

     Request quote
    Application speedpipe bundles ground SRV-G tc bundle various colored, thick-walled speedpipe ground by means of a tight outer sheath. Due to the variety of single duct dimensions of the speedpipe ground and their combination within the bundle, you consider spare capacities for the future. Our system concept is reflected in the protective function and the ease of assembly of the tight outer sheath: it is rugged against the impacts of the surrounding soil, but nevertheless can be opened quickly, easily and safely for branching-off from the bundle.
    Colour Orange (OG)

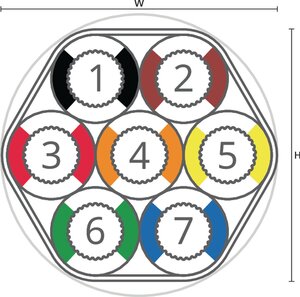

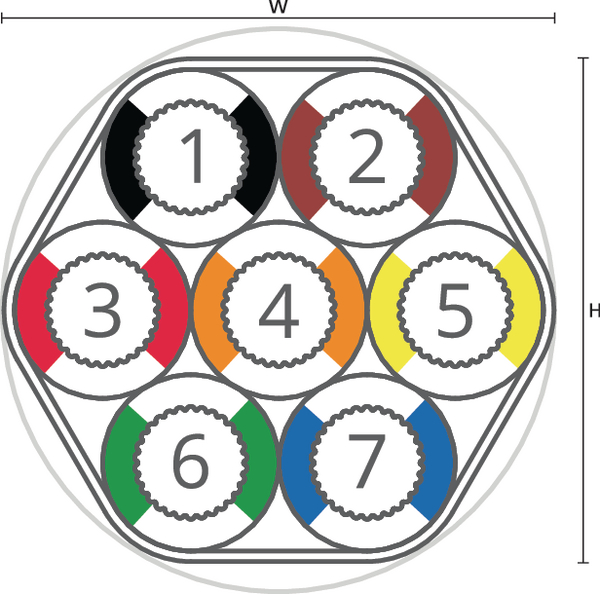

    Description 7 speedpipe ground 10x2.0
    Material Polyethylene, high density (PE-HD)
    PART DESCRIPTION SRV-G_7x10_tc-PE-HD-OG
    Pack Cont. 3650m
    Package Content packed in drum
    Product Family SRV-G 7x10 tc
    Product Group speedpipe bundles ground tight covered.
    Type SRV-G_7x10_tc
    Variant gabo
    Expansion level Fibre to the Building (FTTB), Fibre to the Home (FTTH)
    Length (L) 3650m
    Wall (WT) 0.6mm
    Weight/Unit 0.406kg
    Country of Origin DE
    GTIN-13 / EAN 4031051017569
    Packaging 1 - Height (m) 2.4m
    Packaging 1 - Length (m) 2.4m
    Packaging 1 - Qty 3650
    Packaging 1 - Type drum
    Packaging 1 - Volume (m³) 6.912m³
    Packaging 1 - Weight (kg) 1831.9kg
    Packaging 1 - Width (m) 1.2m
    ETIM 7.0 Key EC000000
    ETIM 8.0 Key EC000000
    ETIM 9.0 Key EC000000
