speedpipe bundles for in-duct systems.
Art.-Nr. 872-00002 | SRV_50/8x10-PE-HD-OG Details

  • significant cost saving especially appears in comparison to the occupation with a multi duct MR4
  • high-quality PE-HD ensures highest product quality and a long life cycle
  • fibre optic cables can be blown into the speedpipe over long distances
  • branching off is carried out in an easy and cost saving way

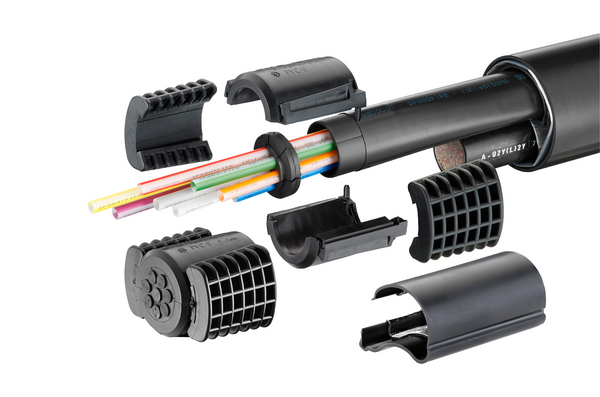

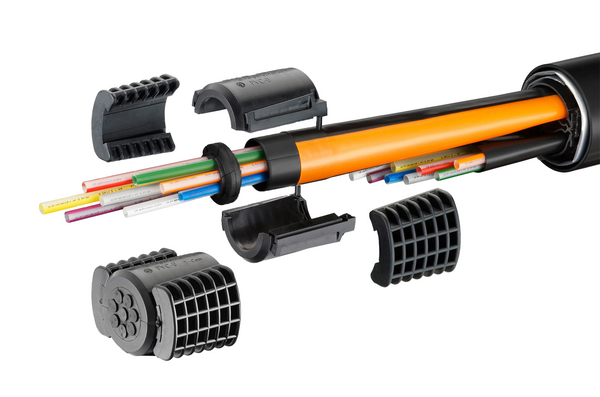

  • SRV can be sealed against gas and water up to 0.5 bar and are fixed against elongations due to temperature changes by using the outside stiffener SHa or the double outside stiffener DSHa and the ADE / TDUX (Tyco)
  • supplied on a wooden one-way spool
Show more

Request your individual offer now

Application By means of a cable grip on the flexible jacket pipe the speedpipe bundles SRV are drawn into empty as well as occupied cable ducts. With the internal eight speedpipe 10 x 1.0 mm up to two bundles can be drawn into an empty cable duct Ø 110 mm. Even in case of an occupancy with a cable up to Ø 50 mm the SRV optimally exploits the residual section for additional fibre optic cables. The comparison with a standard multi-duct MR4 regarding material and effort clearly is in favour of the bundle.
Colour Orange (OG)

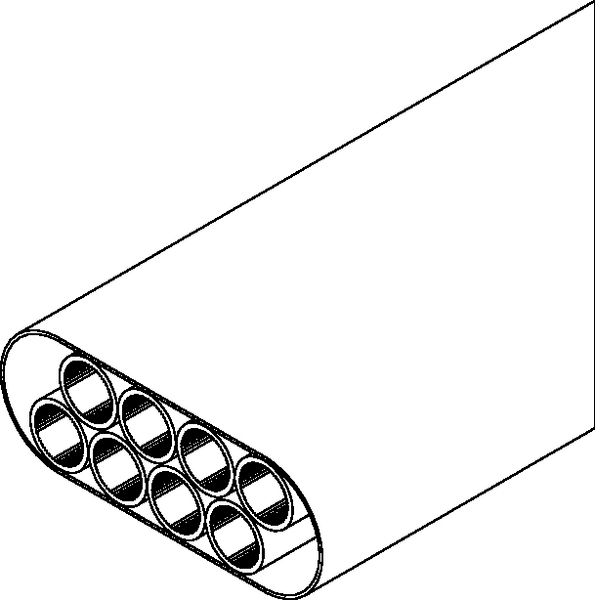

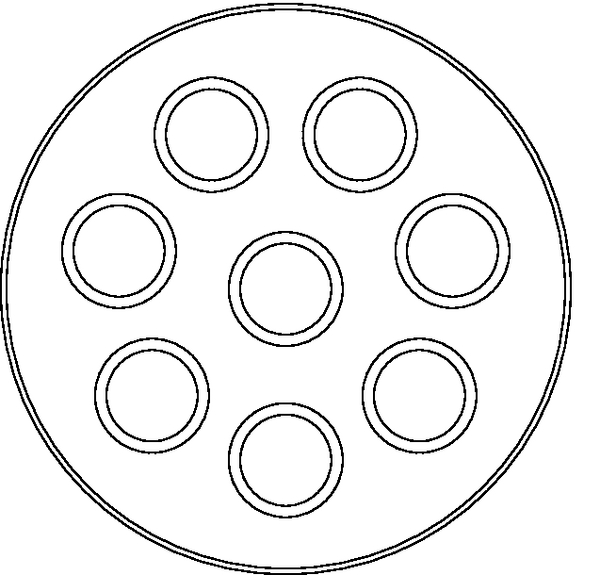

Description 8 speedpipe 10x1.0
Material Polyethylene, high density (PE-HD)
PART DESCRIPTION SRV_50/8x10-PE-HD-OG
Pack Cont. 2300m
Package Content packed in drum
Product Family SRV 50/8x10
Product Group speedpipe bundles for in-duct systems.
Type SRV_50/8x10
Variant DIN
Diameter (D) 50mm
Length (L) 2300m
Wall (WT) 0.5mm
Weight/Unit 0.313kg
Country of Origin DE
GTIN-13 / EAN 4031051084325
Packaging 1 - Height (m) 2.4m
Packaging 1 - Length (m) 2.4m
Packaging 1 - Qty 2300
Packaging 1 - Type drum
Packaging 1 - Volume (m³) 6.912
Packaging 1 - Weight (kg) 1069.9kg
Packaging 1 - Width (m) 1.2m
ETIM 7.0 Key EC000000
ETIM 8.0 Key EC000000
ETIM 9.0 Key EC000000
