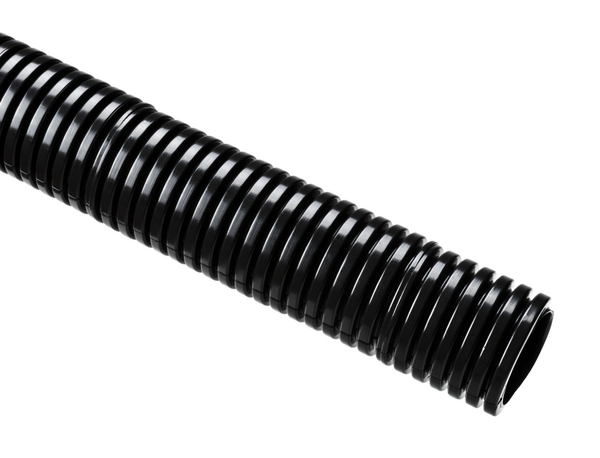

HG-FR0750-PA6FR-BK
Art.-Nr. 166-90204 | HG-FR0750-PA6FR-BK Details

Request your individual offer now

Colour Black (BK)
Material Polyamide 6, flame retardant (PA6FR)
PART DESCRIPTION HG-FR0750-PA6FR-BK
Pack Cont. 30.48m
Package Content packed in reel
Pitch Type coarse
Type HG-FR0750
Bending Radius min. (BR) 1.97"
Bending Radius min. (R) 50mm
Inner Diameter D (Imperial) 0.86"
Inside Ø (ID) 21.7mm
Length (L) 30.5m
Nominal ∅ 0.75"
Nominal ∅ 28mm
Outside Ø (OD) 28.5mm
Outside ∅ (OD) 1.13"
CE Certification No
CSA Certified No
Flammability UL 94 V0
Halogen-free Yes
Limited Fire Hazard Yes
Operating Temperature -40 °C to +120 °C
Operating Temperature Moving -20 °C to +100 °C
ROHS compliant Yes
Specifications
Specifications ASTM 1354, ASTM E 162, ASTM E 662, NFPA130: 2017
UL Listed (US and Canada) No
UL Listed (US and Canada) No
UL Recognized (US and Canada) Yes
UL Recognized (US and Canada) Yes
UL-File Number E229161
UV-Stabilised No
Country of Origin GB
GTIN-13 / EAN 4031026464299
UNSPSC Key 39131601
