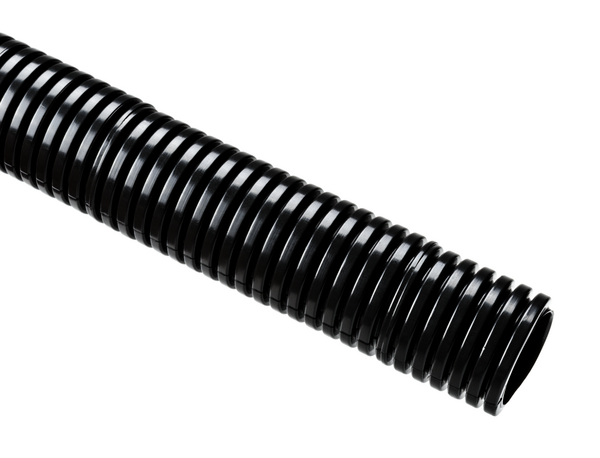

Lightweight Nylon Conduit
Art.-Nr. 166-90196 | HG-LW0380-PA6-BK |  Details

    • Lightweight and highly flexible for use in tight bend and fit applications.
    • Easy to use and cut; reduces installation time and labor costs.
    • Good abrasion resistance and impact strength; recovers quickly if crushed.
    • Offered in fine or course corrugated pitch.
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Application Lightweight nylon corrugated conduit provides high flexibility and good mechanical protection of wire and cable bundles, especially useful in smaller bend radius tight-fit applications. PA6 material offers high resistance to oils and solvents, along with good abrasion protection. Combine with HelaGuard non-metallic fittings for IP66 rating or greater protection against water, wind and dirt.
    Colour Black (BK)
    Description Lightweight nylon corrugated conduit provides high flexibility and good mechanical protection of wire and cable bundles, especially useful in smaller bend radius tight-fit applications. PA6 material offers high resistance to oils and solvents, along with good abrasion protection. Combine with HelaGuard non-metallic fittings for IP66 rating or greater protection against water, wind and dirt.
    Material Polyamide 6 (PA6)
    PART DESCRIPTION HG-LW0380-PA6-BK
    Pack Cont. 30.48m
    Package Content packed in reel
    Pitch Type fine
    Product Family HG-LW Series, PA6
    Product Group Lightweight Nylon Conduit
    Type HG-LW0380
    Bending Radius min. (BR) 1.38"
    Bending Radius min. (R) 35mm
    Inner Diameter D (Imperial) 0.48"
    Inside Ø (ID) 11.8mm
    Length (L) 30.5m
    NW ∅ 12mm
    Nominal ∅ 0.38"
    Nominal ∅ 16mm
    Outside Ø (OD) 15.8mm
    Outside ∅ (OD) 0.63"
    CE Certification No
    CSA Certified No
    Flammability EN IEC 61386
    Halogen-free Yes
    Operating Temperature -40 °C to +120 °C
    Operating Temperature Moving -20 °C to +100 °C
    ROHS compliant Yes
    Self extinguishing Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) Yes
    UL Recognized (US and Canada) Yes
    UL-File Number E229161
    UV-Stabilised No
    Country of Origin GB
    GTIN-13 / EAN 4031026464213
    UNSPSC Key 39131601
