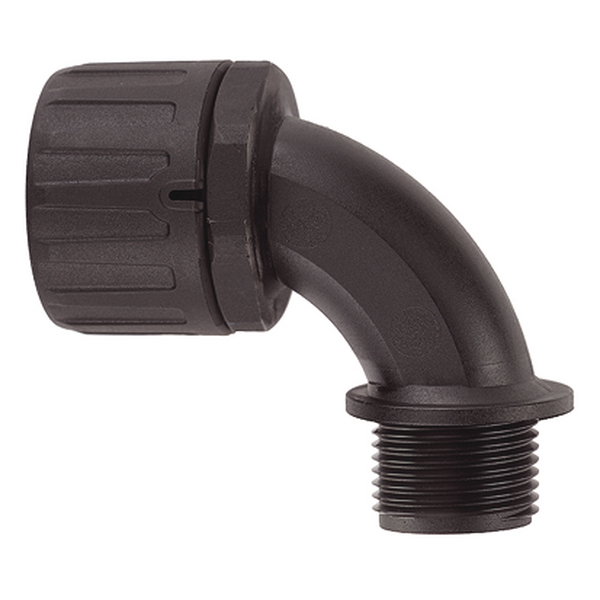

HG125-90-1250-PA66-BK
Art.-Nr. 166-90101
| HG125-90-1250-PA66-BK
|
Details
| Colour | Black (BK) |
| Material | Polyamide 6.6 (PA66) |
| Material Fitting | Polyamide (PA) |
| PART DESCRIPTION | HG125-90-1250-PA66-BK |
| Pack Cont. | 2pcs. |
| Package Content packed in | bag |
| Strain Relief Function (Y/N) | No |
| Swivel Thread (Y/N) | No |
| Thread type | NPT |
| Type | HG125-90-1250 |
| Type of connection | Snap-connection |
| Variant | 90°-elbow |
| Bore Diameter (Imperial) | 1.28" |
| Bore Diameter (metric) | 32.5 |
| Length (L) | 98.04mm |
| NW ∅ | 36mm |
| Nominal ∅ | 1.25" |
| Nominal ∅ | 42mm |
| Outside Ø (OD) | 63mm |
| Outside ∅ (OD) | 2.48" |
| Thread Length (TL) | 16mm |
| Thread Length (TL) (Imperial) | 0.63" |
| Thread Size (Imperial) | 1-1/4 " |
| clearance hole Diameter (Imperial) | 1.984" |
| clearance hole Diameter (Metric) | 50.39mm |
Download
| CE Certification | No |
| CSA Certified | No |
| Flammability | UL 94 V2 |
| Halogen-free | Yes |
| IP-Rating | IP66 |
| Operating Temperature | -50 °C to +135 °C |
| ROHS compliant | Yes |
| Specifications |
|
| UL Listed (US and Canada) | No |
| UL Listed (US and Canada) | No |
| UL Recognized (US and Canada) | Yes |
| UL Recognized (US and Canada) | Yes |
| UL-File Number | E229161 |
| UV-Stabilised | No |
